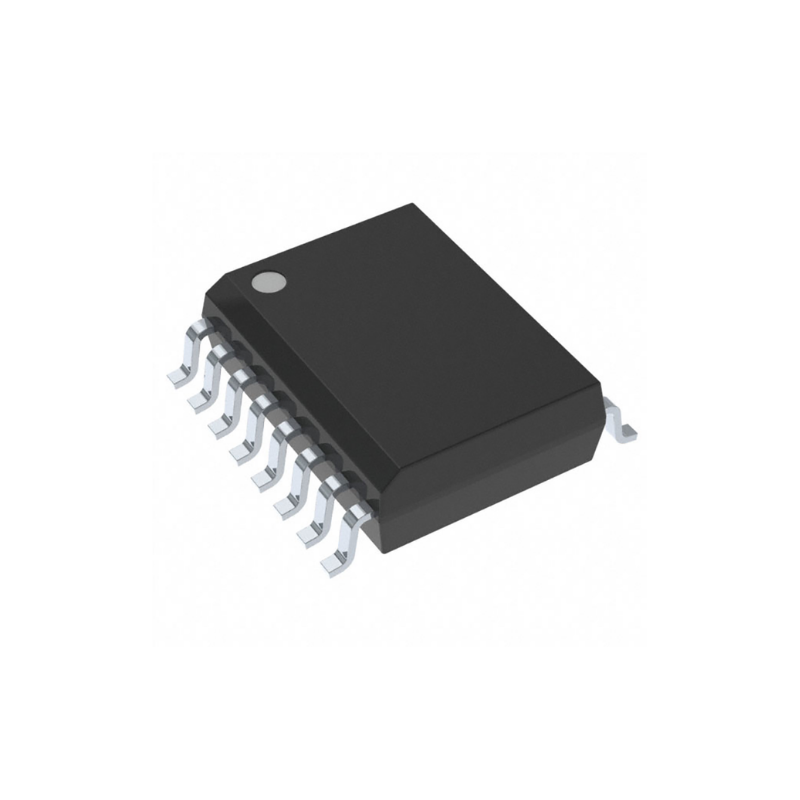

Uc3825Dwswitching Controllers – SCIx1747

Name: Uc3825Dwswitching Controllers - SCIx1747
SKU: SS155227
Price: 61.43 AED
Availability: InStock

AED 61.43 VAT included

100 in stock

Compare

Product Code : SS155227 Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

The UC3825DW is a high-performance, high-speed PWM controller designed for switched-mode power supply (SMPS) and DC-DC converter applications. Operating at frequencies up to 1 MHz, it ensures superior efficiency and precision in demanding environments.

Equipped with dual 1.5A peak output drivers, the UC3825DW delivers robust gate driving capability for power MOSFETs and IGBTs. Its integrated slope compensation and wide bandwidth error amplifier guarantee excellent stability and performance over a range of operating conditions.

Safety and reliability are enhanced with built-in features like undervoltage lockout, soft start functionality, and pulse-by-pulse current limiting. The compact SOIC-16 package facilitates integration into modern, space-constrained designs, making the UC3825DW an ideal choice for industrial, automotive, and consumer electronics.

Features

High-Speed Switching: Operates at up to 1 MHz, ensuring compatibility with high-frequency applications.
Dual Output Drivers: 1.5A peak current capability with low propagation delay for fast response.
Wide Input Voltage Range: Supports 10V to 30V for versatile power supply applications.
Enhanced Stability: Integrated slope compensation and error amplifier for reliable operation.
Built-In Protections: Features undervoltage lockout, soft start, and pulse-by-pulse current limiting.
Compact SOIC-16 Package: Space-saving design for easy integration into complex circuits.
