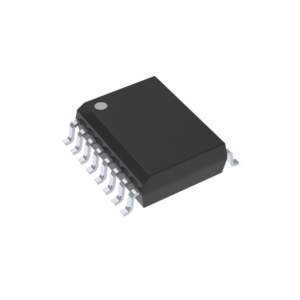

Uc3825Dwswitching Controllers - SCIx1747
AED 61.43 VAT included
Next product

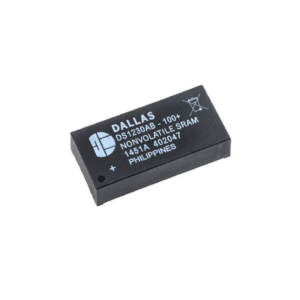

Ds1230Ab-100: Nvram 256K Nonvolatile Sram - SCIx3418
AED 40.95 VAT included
74F240Pc: Ic Buffer Invert 5.5V 20Dip Buffer, Inverting 2 Element 4 Bit Per Element 3-State Output 20-Pdip – SCIx3398
AED 38.22 VAT included

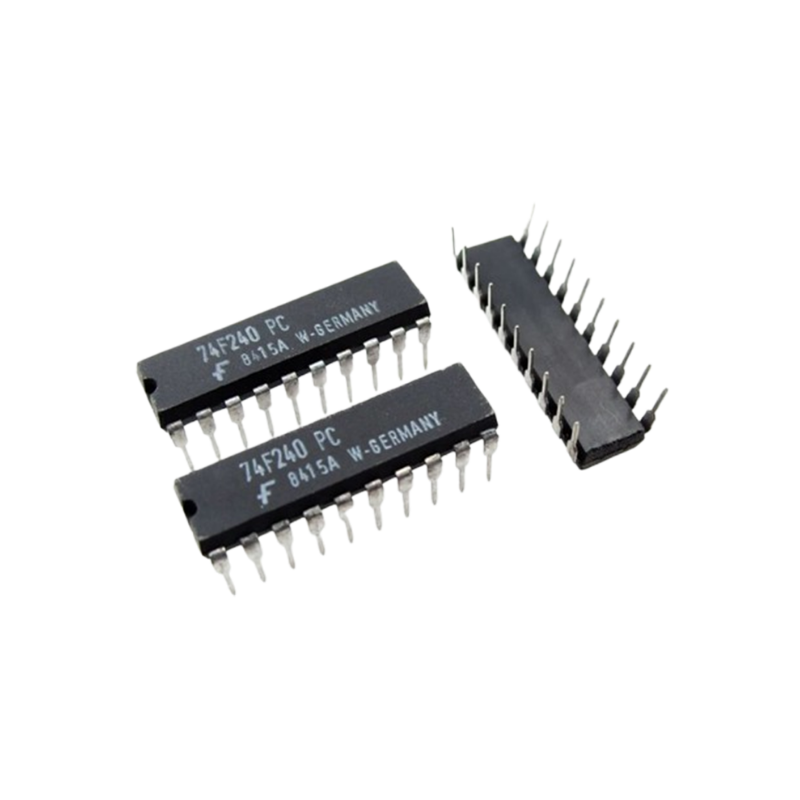

74F240Pc: Ic Buffer Invert 5.5V 20Dip Buffer, Inverting 2 Element 4 Bit Per Element 3-State Output 20-Pdip – SCIx3398
100 in stock
Product Code : SS155228
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The AMI Semiconductor / ON Semiconductor 74F241PC is a 4-bit, non-inverting buffer and driver IC that features 3-state outputs. Designed as part of the 74F series of logic devices, this integrated circuit is classified as a logic buffer, driver, receiver, or transceiver.The 74F241PC is housed in a 20-pin dual in-line package (DIP) and is RoHS-compliant, making it suitable for use in lead-free electronics. It operates within a temperature range of 0°C to 70°C and is powered by a 4.5V to 5.5V supply voltage.
Features
- 4-bit non-inverting buffer with 3-state outputs
- Capable of providing up to 3mA of high-level output current and 64mA of low-level output current
- Two independent 4-bit buffer elements within a single package
- Suitable for a variety of digital logic applications requiring signal buffering, driving, or receiving
- Available in a through-hole 20-pin DIP package
Specifications
- Model: SCIx3398
- Number of Input Lines: 8 Input
- Number of Output Lines: 3 Output
- Polarity: Inverting
- High Level Output Current: - 15 mA
- Low Level Output Current: 64 mA
- Supply Voltage - Max: 5.5 V
- Supply Voltage - Min: 4.5 V
- Minimum Operating Temperature: 0 C
- Maximum Operating Temperature: 70 C
- Mounting Style: Through Hole
- Package/Case: PDIP-20
- Function: Buffer/Line Driver
- Height: 3.43 mm (Max)
- Input Signal Type: Single-Ended
- Length: 26.92 mm (Max)
