ABS Emergency Door Release Switch Dual Color Indicators, 86mm x 86mm – Q-K4GB
AED 110.25 VAT included
ABS Emergency Door Release Switch Dual Color Indicators, 86mm x 86mm – Q-K4GB
Product Code : SS154042
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description

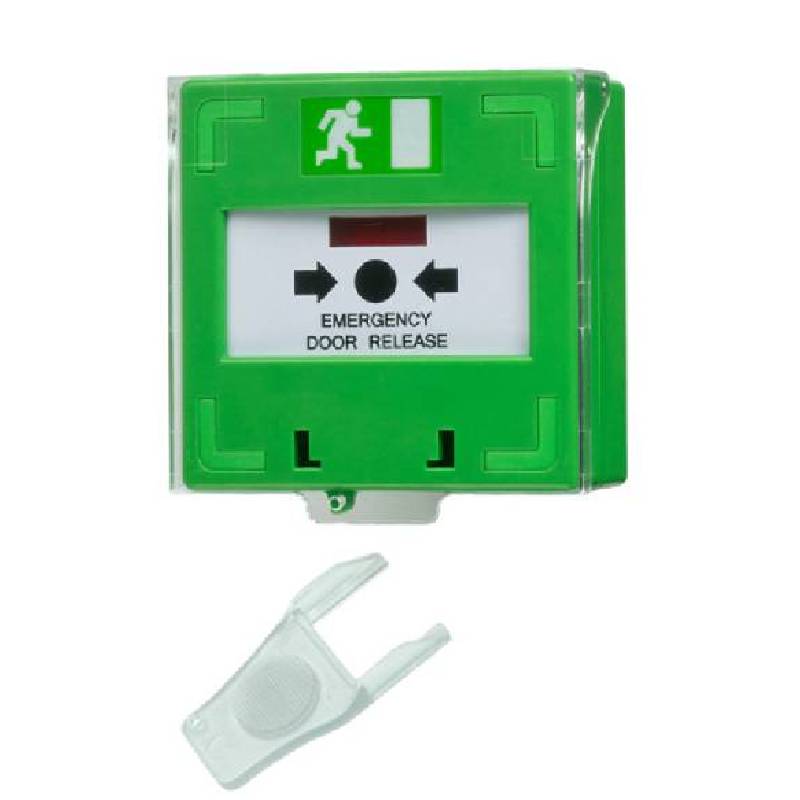

The Q-K4GB is a resettable green break glass fire alarm exit emergency door release button, equipped with an LED indicator and buzzer. This device is designed for use in emergency exit and fire alarm systems, providing a reliable and visible method for triggering an alarm or releasing a door during emergencies. The button features dual-color indicators and customizable buzzer settings, making it a versatile and essential component in safety systems.
Features
- Resettable Design: Features a resettable mechanism, allowing the device to be reused after activation without needing to replace components.
- Customizable Alerts: Buzzer can be configured for different alert modes, enhancing flexibility for various scenarios.
- Dual-Color Indicators: Provides clear visual feedback with dual-color LEDs, enhancing the effectiveness of emergency signaling.
- Durable Construction: Made from ABS and PC materials, ensuring long-lasting durability and resistance to environmental factors.
Specifications
- Model: Q-K4GB
- Power Supply: DC 12V ~ DC 24V ± 5%
- Buzzer: Can be set to silent, interval buzzing, or continuous buzzing
- Indicator: Dual-color (red and green); Red indicator can be set to blink, stay on, or remain off
- Material: ABS, PC
- Output Contact: Double channel NO/NC/COM
- Dimensions: 86mm x 86mm
