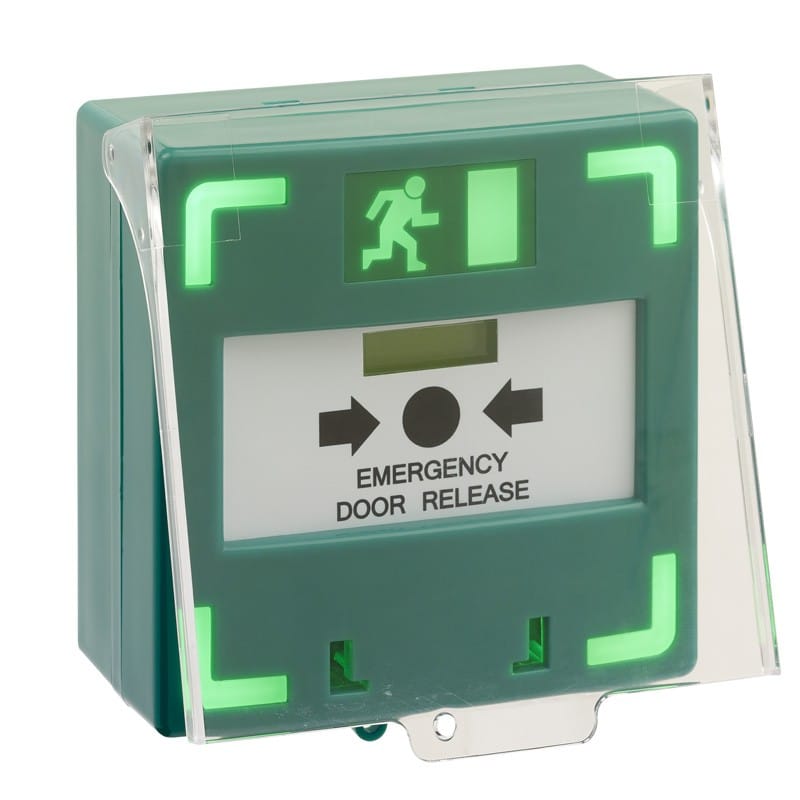

Resettable call point with LED & SOUNDER, 12-24VDC, Three Poles
See all products from elockAED 137.34 VAT included
EL-MCP110 Resettable design obvious indicators around the edges of the unit.Easy to assemble, outer case without screws, 3 set of output points to connect other equipment, embedded or surface installations to select.
Product Code : SS10282
Brand: Elock
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
EL-MCP110 Resettable design obvious indicators around the edges of the unit.Easy to assemble, outer case without screws, 3 set of output points to connect other equipment, embedded or surface installations to select.
Features
- Resettable design
- Press the pressing plate to enable the output function
- Pressing plate with status (green and red) shown
- Reversionary key with non-slip design
- Built-in buzzer status
- Input power range from DC12-24V to connect with all types of fire alarm system.
- Easy to assemble, outer case without screws, 3 set of output points to connect other equipment, embedded or surface installations to select
Specifications
- Power Supply : DC 12V ~ DC 24V
- Buzzer : Set as silent, interval wailing or continuous wailing
- Indicator : Dual color (Red and Green) Red indicator to set blinking, off or on
- Output : N.O / N.C / COM (maximum load 125V/3A)
- Material : ABS, PC
- Dimension : 90L x 93W x 45H (mm)
- Weight : 208g (including wrapp
