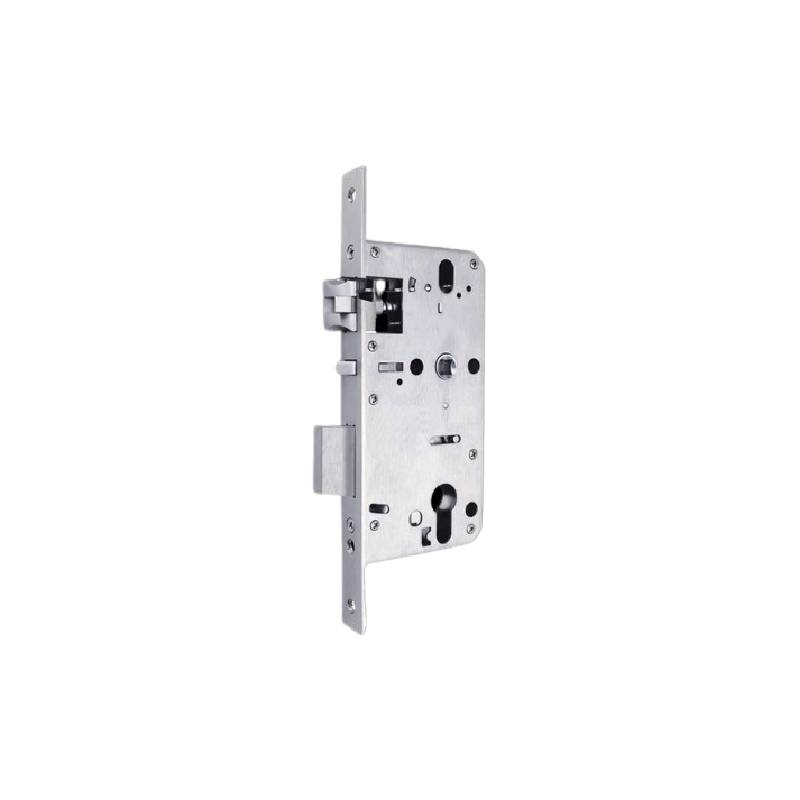

Quant – Electric Mortise Door Lock with Connector, 22mm x 230mm – Q-EML5572
AED 381.78 VAT included
Quant – Electric Mortise Door Lock with Connector, 22mm x 230mm – Q-EML5572
Product Code : SS154463
Brand: Quant
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The Q-EML5572 is advanced Electronic Locking System is designed for reliable and secure access control, suitable for various door types including wooden, metal, and fire doors. With flexible voltage options and robust performance, this system is ideal for both residential and commercial applications.
Features
- Working Voltage: Available in both DC 12V and DC 24V options to accommodate different installation requirements.
- Working Current: Efficient operation with current ratings of 240mA or 120mA, ensuring minimal energy consumption.
- Lock Signal Output: Ensures secure locking with feedback.
- Handle Signal: Supports additional access control features.
- Working Method: Configurable to operate in either normally open mode (open when powered off) or normally closed mode (open when powered on), providing flexibility for various security needs.
Specifications
- Brand: Quant
- Model: Q-EML5572
- Material: 8*8MM 304 Stainless steel
- Backset: 55mm
- Locking Distance: 72mm
- Lock signal, Handle output: Yes
- Operating Temperature: -25°C-55°C
- Operating Humidit: 5%RH-95%RH
- Forend Type:Square head Thickmees:3MM Width:22mm Length:230MM
- Accessories Striking plate, Pocket, and Fixing screws
- Panel Dimension: 22×230 mm
