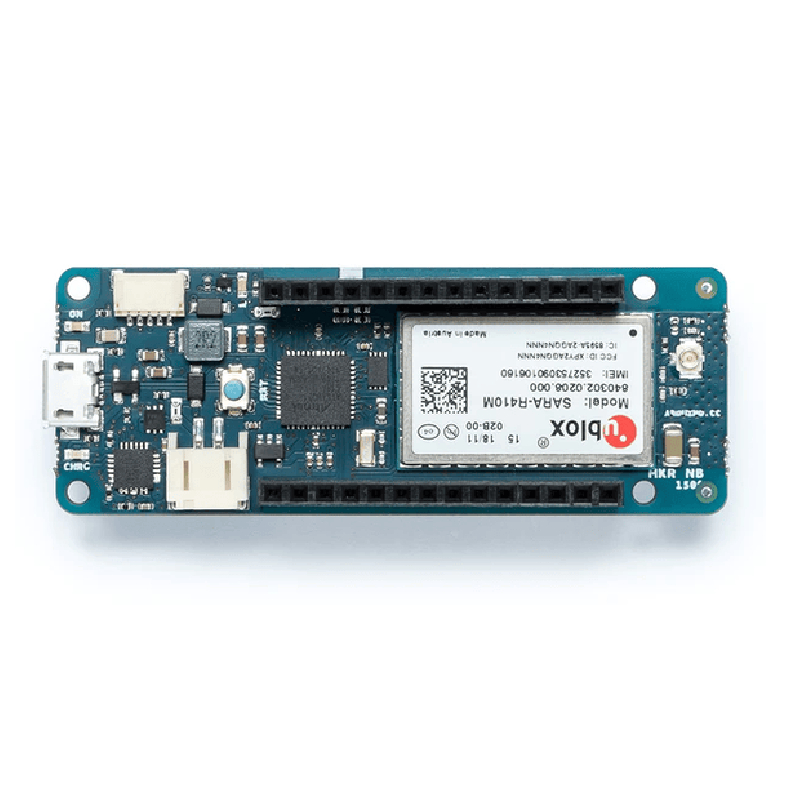

Arduino – MKR NB1500 Development Board, 32-bit – DEDB0093

The MKR NB 1500 is ideal for devices situated in remote areas without an Internet connection or where power sources are scarce, such as on-field deployments, remote metering systems, or solar-powered devices in extreme conditions. This board is powered by a low-power Arm® Cortex®-M0 32-bit SAMD21 microcontroller, similar to other boards in the Arduino MKR family. The Narrowband communication is enabled by the u-blox SARA-R410M-02B module, a low-power chipset that operates across different bands within the IoT LTE cellular spectrum. Secure communication is provided by the Microchip® ECC508 crypto chip. Additionally, the board is equipped with a battery charger and an external antenna connector. Designed for global use, it supports connectivity on LTE’s Cat M1/NB1 bands 1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, and 28. Supported operators in these bands include Vodafone, AT&T, T-Mobile USA, Telstra, and Verizon, among others.
