Avalon - Cat 6 2U Unshielded Patch Panel 48 Port, 19inch - ANC6UPP-48
AED 270.90 VAT included
Next product
Avalon - Cat 6A 1U Unshielded Blank Patch Panel 24 Port, 19inch - ANC6AUPP-24-BL
AED 70.88 VAT included
Avalon – Cat 6 1U Shielded Patch Panel 24 Port, 19inch – ANC6SPP-24
See all products from avalonAED 315.00 VAT included

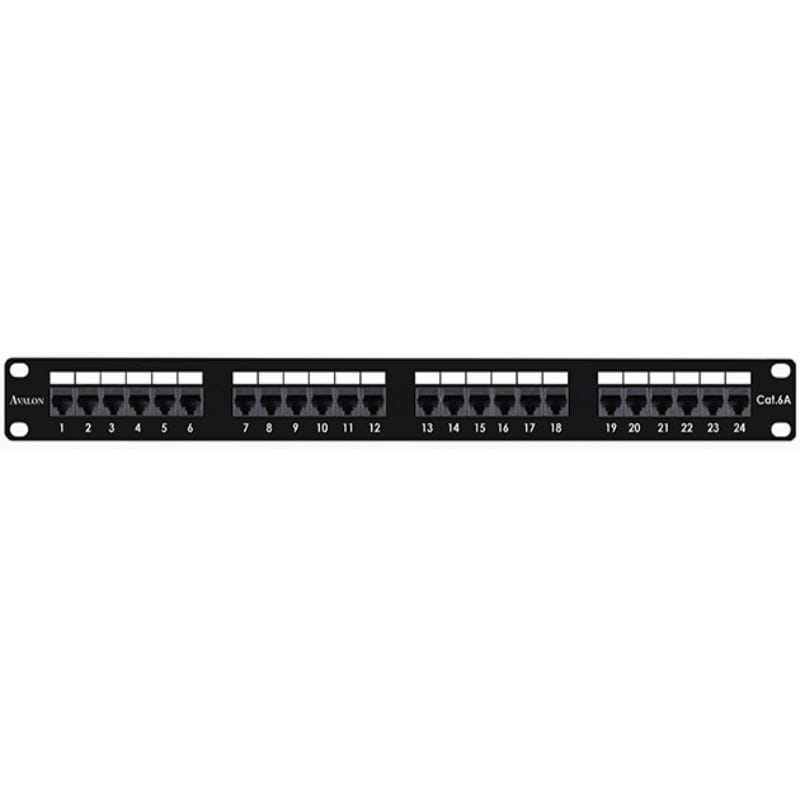

Avalon – Cat 6 1U Shielded Patch Panel 24 Port, 19inch – ANC6SPP-24
Product Code : SS150996
Brand: Avalon
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Avalon CAT.6 24 Port Patch Panels are the industry’s high-quality Panels that support the latest technologies and diverse applications. These panels combine strength and durability with a sleek look, making them ideal for all kinds of environments. These comply with ANSI/TIA-56-.2, ISO/IEC 11801 and EN 50173-1 Class E specifications. The complete module complies with EU ROHS directive. The construction is in standard 19 size, suits for all 19 rack installations.
Features
- High density 24 port 1U patch panel
- STP Snap-in Type
- Six Port RJ45 modules applied
- Suitable for Cat.6 STP Keystone Jacks
- Integral plastic cable management
- Modern design and simplicity of mounting
- Rear cover to improve shielding and protect terminals
- LSA style termination blocks
- Easy field label systems
- Port identification
Specifications
- Brand: Avalon
- Part: ANC6SPP-24
- Thickness of cold-rolled steel: 1.5mm
- Shielded Cover: 50U Nickel plated over phosphor bronze
- Operating Temperature Range: -60? to 80?
- IDC Accept: 22-26 AWG
- Wire Scheme: T568A/B
- Insulation Resistance: 500?
- Current Rating: 1.5Amps
- DC Resistance: 0.1 ohm MAX
- DC Resistance: 0.1 ohm MAX
- Voltage: 150 VAC MAX
- Plug Retention Force: 89N
- Spring Wire: Phosphor Bronze With Gold-plated 3u-50u
- IDC Contact: Phosphor Bronze
- Specifically Design: With Two PCB Panel & Tool-less
- Insertion life: ?1000 mating cycles
