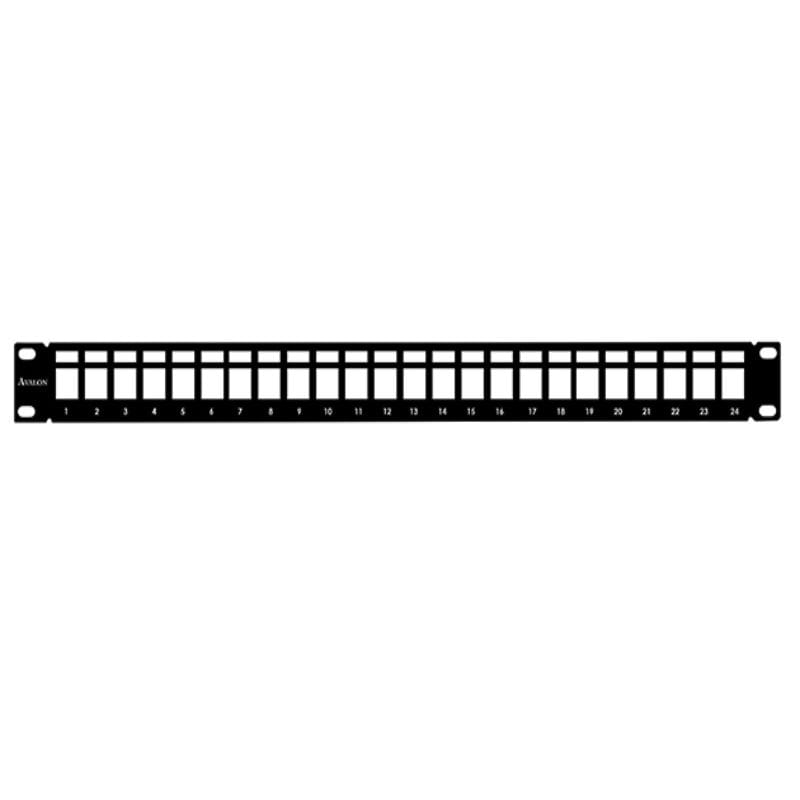

Avalon – Cat 6A 1U Unshielded Blank Patch Panel 24 Port, 19inch – ANC6AUPP-24-BL
Product Code : SS150997
Brand: Avalon
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Avalon Cat.6A Blank Patch Panels are the industry’s high-quality Panels that support the latest technologies and diverse applications. These panels combine strength and durability with a sleek look, making them ideal for all kinds of environments. These comply with ANSI/TIA-56-.2, ISO/IEC 11801 and EN 50173-1 Class E specifications. The complete module complies with EU ROHS directive. The construction is in standard 19 size, suits for all 19 rack installations.
Features
- Accepts Cat6A Keystone jacks
- Mounts in standard 19 racks
- With cable management bar for improved management
- Available in 1U
Specifications
- Brand: Avalon
- Part: ANC6AUPP-24-BL
- Thickness of cold-rolled steel: 1.5mm
- Operating Temperature Range: -60? to 80?
- IDC Accept: 22-26 AWG
- Wire Scheme: T568A/B
- Insulation Resistance: 500?
- Current Rating: 1.5Amps
- DC Resistance: 0.1 ohm MAX
- Voltage: 150 VAC MAX
- Plug Retention Force: 89N
- Spring Wire: Phosphor Bronze With Gold-plated 3µ-50µ
- IDC Contact: Phosphor Bronze
- Specifically Design: With Two PCB Panel & Tool-less
- Insertion life: ?1000 mating cycles
- Plug /Jack Contact Force: 100g min
- Humidity: 5 to 93% (non-condensing)
