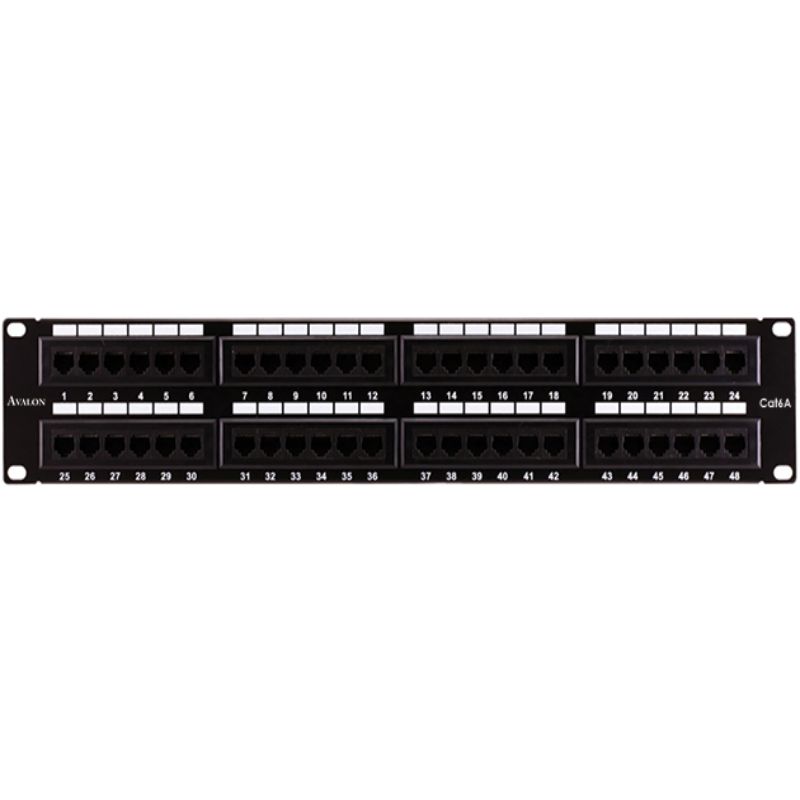

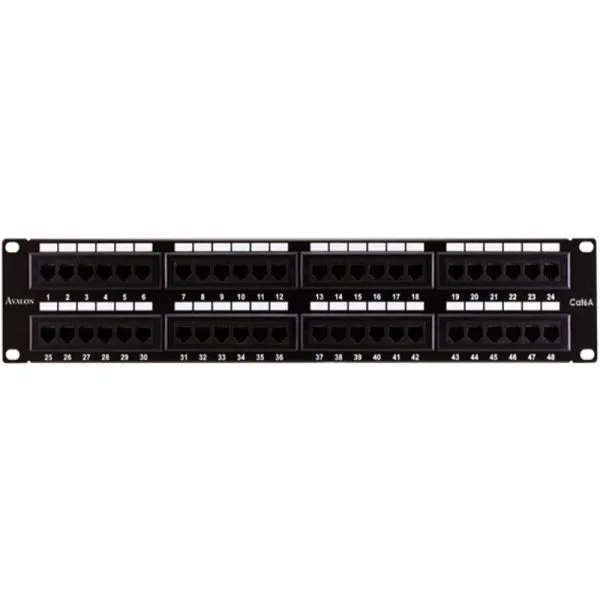

Avalon – Cat 6A 48 Port Unshielded Patch Panel Loaded, 2U – ANC6AUPP-48
See all products from avalonAED 510.30 VAT included
Avalon – Cat 6A 48 Port Unshielded Patch Panel Loaded, 2U – ANC6AUPP-48
Product Code : SS151000
Brand: Avalon
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Avalon CAT.6A 48 Port Patch Panels are the industry’s high-quality Panels that support the latest technologies and diverse applications. These panels combine strength and durability with a sleek look, making them ideal for all kinds of environments. These comply with ANSI/TIA-56-.2, ISO/IEC 11801 and EN 50173-1 Class E specifications. The complete module complies with EU ROHS directive. The construction is in standard 19 size, suits for all 19 rack installations.
Features
- High density 48 port 2U patch panel
- UTP Snap-in Type
- Six Port RJ45 modules applied
- Suitable for Cat.6A UTP Keystone Jacks
- Integral plastic cable management
- Modern design and simplicity of mounting
Specifications
- Brand: Avalon
- Part: ANC6AUPP-48
- Thickness of cold-rolled steel:1.5mm
- Operating Temperature Range : -60? to 80?
- IDC Accept: 22-26 AWG
- Wire Scheme: T568A/B
- Insulation Resistance: 500?
- Current Rating: 1.5Amps
- DC Resistance: 0.1 ohm MAX
- Voltage: 150 VAC MAX
- Plug Retention Force: 89N
- Spring Wire: Phosphor Bronze With Gold-plated 3µ-50µ
- IDC Contact: Phosphor Bronze
- Specifically Design: With Two PCB Panel & Tool-less
- Insertion life: ?1000 mating cycles
- Plug /Jack Contact Force: 100g min
- Humidity: 5 to 93% (non-condensing)
