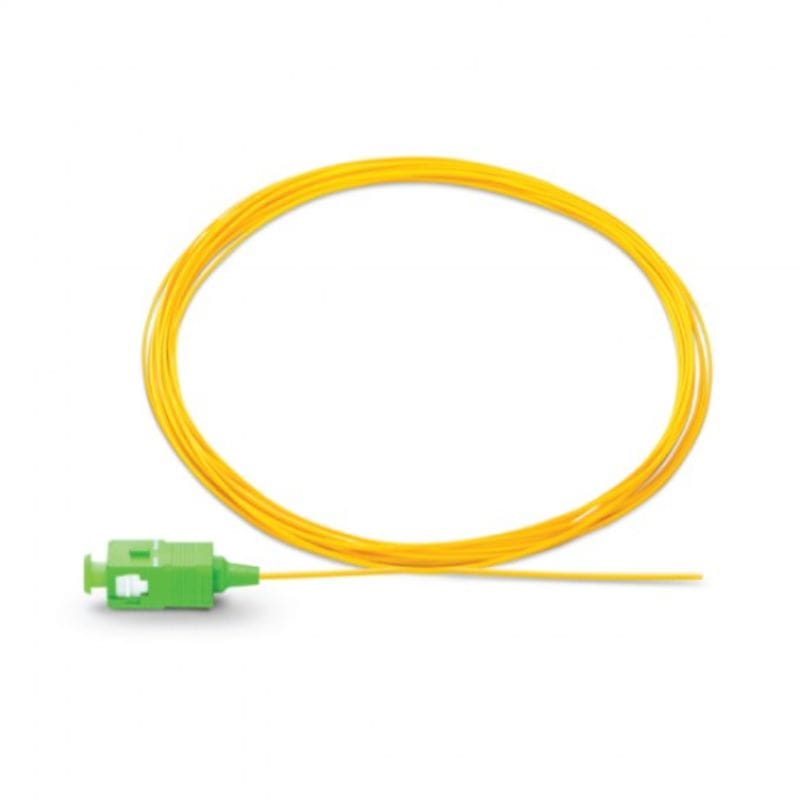

Avalon – Fiber SC Pigtail Single Mode APC LSZH, 1mtr – ANPT-SM-SC/APC-1MT
See all products from avalonAED 13.50 VAT included
Avalon – Fiber SC Pigtail Single Mode APC LSZH, 1mtr – ANPT-SM-SC/APC-1MT
Product Code : SS150900
Brand: Avalon
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Avalon angle polished (APC) pigtails are made by polishing the fiber either at 8 or 9 degrees angle with a radius of curvature between 5mm and 12mm. This fiber has a typical insertion loss of 0.2 dB per connection and APC polished end faces at 65dB minimum return loss. It also passes the international standards of all TIA/EIA-568-B.3, ISO/IEC 11801 OSI performances and complies with the UL 1666 flame rating.
Features
- Pass all ISO/IEC 11801 IS1 performance requirements
- Jacketed cable compliant with UL 1666 flame rating
- 100% factory inspected end face geometry in Compliance with TELCODIA GR-326-Core
- Typical Insertion loss per connection is 0.2dB
- APC Polished end faces 65db minimum return loss
Specifications
- Brand: Avalon
- Part: ANPT-SM-SC/APC-1MT
- Fiber Type: Single-mode, Simplex
- Return Loss: 45dB
- Mating Durability: 0.2dB typical change, 1000 times
- Operating Temperature: -40 +75°C
- Storage Temperature: -40 +85°C
