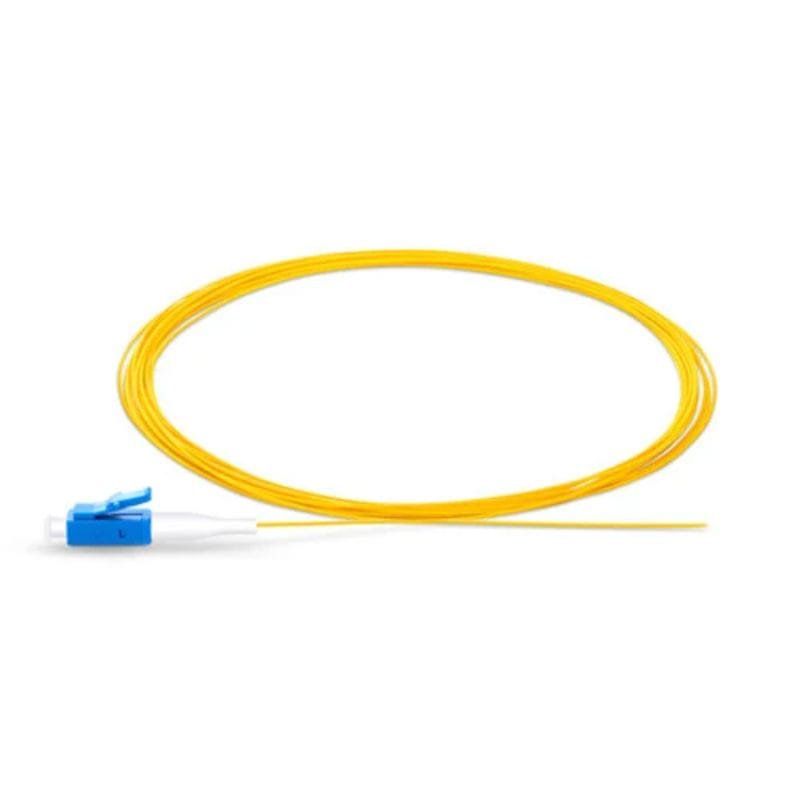

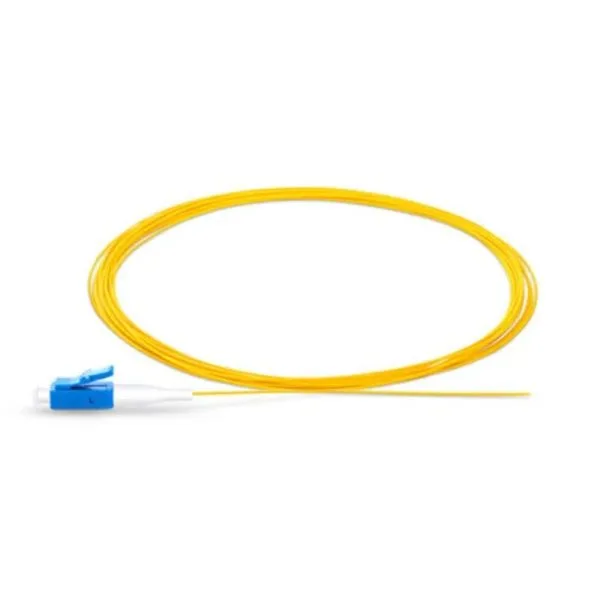

Avalon – LC UPC Fiber Pigtail Single Mode LSZH, 1mtr – ANPT-SM-LC-1MT
Product Code : SS150902
Brand: Avalon
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Avalon LC fiber pigtails are premium grade connectors with a typical 0.9mm outer diameter cables in simplex construction. It features the RJ-45 style interface with low insertion loss and low back reflection with a high precision alignment. The connector has a 1.25mm 0.D Zirconia ceramic ferrule.
Features
- Low Smoke Zero Halogen (LSZH) buffer
- 900 micron buffer
- Low bend loss design
- Fully compatible with legacy fibers
- Economical bend loss performance
- Optical attenuation that is flat across the C & L-Bands
- Complied the standards of ITU-T G.652.D ITU-T G.657.A
Specifications
- Brand: Avalon
- Part: ANPT-SM-LC-1MT
- Durability: 1000 Matings
- Temperature Cycling: 40 +80 degrees Celsius (42 Cycles)
- Humidity Cycling: 75 degrees Celsius, 95%/336hr
- Vibration: 10 55 HZ ( 2 hours)
- Flex Test: 0 to 90 degrees to 0 to 90, 5kgf (100 cycles)
- Twist Test: 0.9mm :0.75kgf, 2.0mm:1.53 kg
- Straight Pull: Test 100 N Load
- Impact 1.5m drop, 8 times
