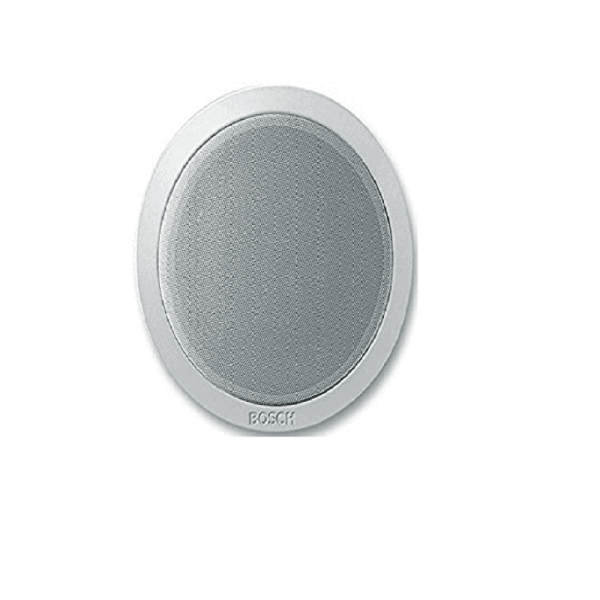

Bosch LHM 0606 Ceiling Loudspeaker

Bosch LHM 0606 Ceiling Loudspeaker

Suitable for speech and music reproduction
Flush-mounting in ceiling cavity
Easy to install
Simple power setting
Unobtrusive in virtually all interiors

Technical specifications
Electrical
Maximum power 9 W
Rated power 6 / 3 / 1.5 W
Sound pressure levelat 6 W / 1 W (1 kHz, 1 m)94 dB / 86 dB (SPL)
Sound pressure levelat 6 W / 1 W (4 kHz, 1 m)106 dB / 98 dB (SPL)
Effective frequency range(-10 dB)80 Hz to 18 kHz
Opening angleat 1 kHz/4 kHz (-6 dB)175° / 55°
Rated voltage 100 V
Rated impedance 1667 ohm
Connection Flying leads
Mechanical
Diameter 199 mm (7.8 in)
Maximum depth 70.5 mm (2.8 in)
Mounting cut-out 165 + 5 mm (6.5 + 0.20 in)
Speaker diameter 152.4 mm (6 in)
