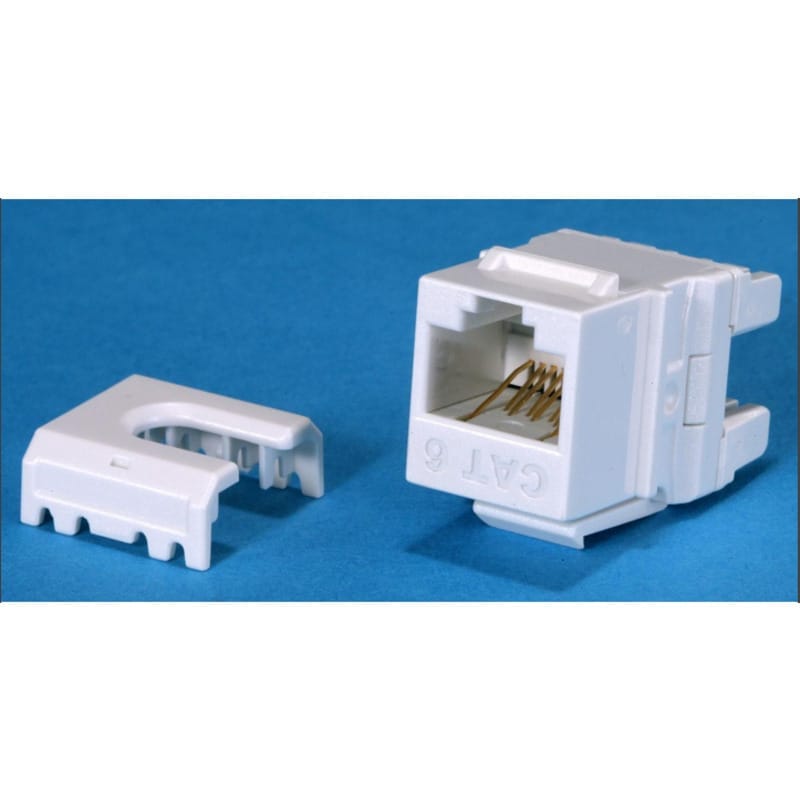

DME Prolink – CAT6 Keystone Unshielded Modular Jack F-Tool Compatible, 180 Deg
See all products from dme-prolinkVAT included
DME Prolink – CAT6 Keystone Unshielded Modular Jack F-Tool Compatible, 180 Deg
Product Code : SS14572
Brand: DME Prolink
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
DME PROLINK?s Keystone Jacks RJ45 are designed to be used with all DME PROLINK compatible products. The jack is designed in such a way that it romotes consistent performance over the life of the system. This includes unique pair separation towers allowing for quicker and easier termination. The connector is configured in a 180? configuration such that the punch field is on the rear of the jack, allowing for rear termination. DME PROLINK System components meet or exceed the requirements for channel and component level performance for the TIA/EIA Category and cUL(us) Listed. Compatible with DME PROLINK?s Special Termination Tool called F-Tool.
Features
- Meets all requirements specified in ANSI/TIA-568.2-D CAT6 connecting hardware requirements
- Snap in style keystone jack; Fire Retardant Grade: UL-94V-0
- The termination field is on the rear of the jack for easy access
- Can accommodate Conductor diameter in the range 0.5-0.65mm (AWG 22-24)
- Connector wiring is universal and has installation color codes for both T568A and T568B wires schemes
Specifications
- Brand: DME PROLINK
- Electrical Insulation Resistance: 500 M? min. @ 100V DC
- Dielectric Withstanding Voltage: 1000V DC or AC Peak Contact to Contact @ 60Hz for 1 minute
