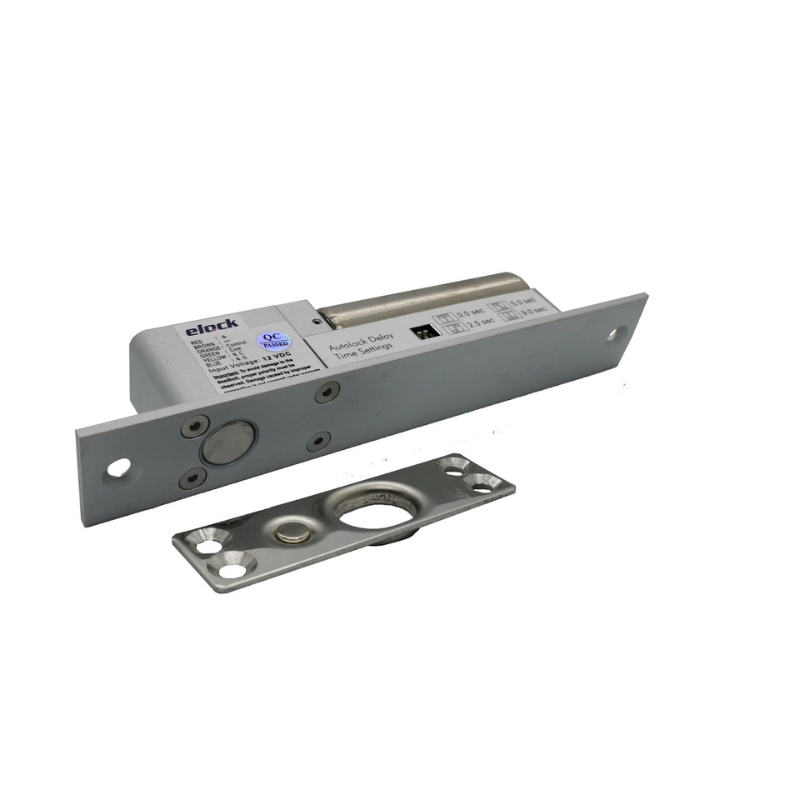

Electric Bolt Action Lock (Fail Safe type)
See all products from elockAED 268.80 VAT included

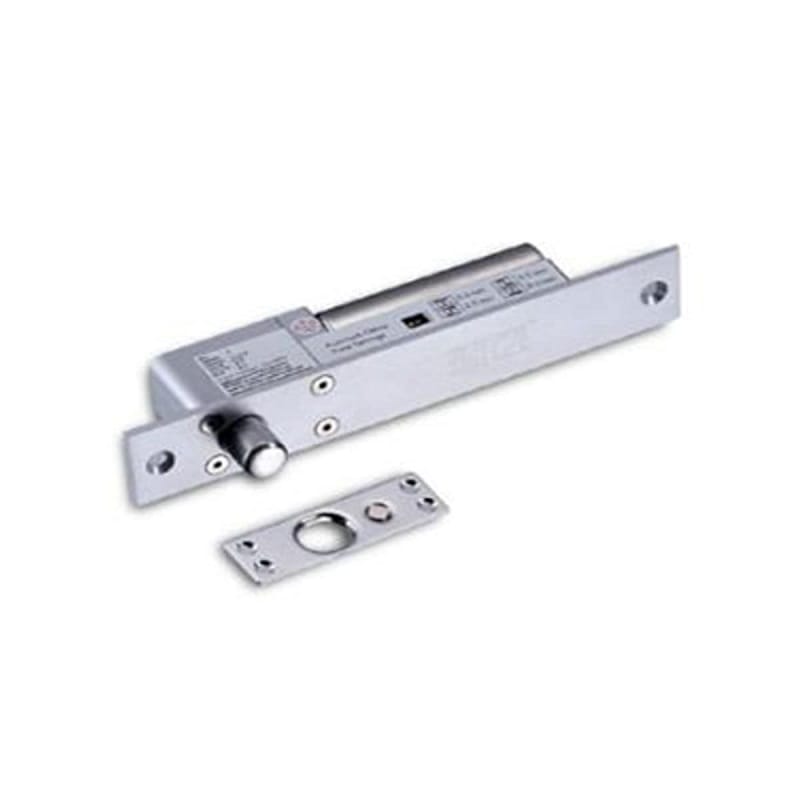

Elock-B100 Electric Bolt locks offer a choice of mortice of surface installation application, allows remote access and exit control of wood,aluminium or steel, doors.
Product Code : SS10230
Brand: Elock
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The Elock-B100 bolt action lock offers wide range of installation application, suitable for wood, aluminium and steel doors. Works with sliding, single-action and double action doors and gates
Features
- Fail-safe type (Power to lock)
- Built-in delayed egress control point
- LED Indicator
- Door statue signal output contact
- Anti-intrusion and smart circuit
- Ultra-low temperature and power consumption design
- EL-BK-G200 Frameless Glass Door Bracket
- EL-BK-G201 Glass Door Holder
Specifications
- Face Plate: 200mm x 32mm x 40mm
- Bolt Stainless Steel: 15.5 Diameter, 16mm throw
- Strike Plate: 90mm x 26mm x 2mm
- Operating Voltage: 12VDC
- Built-in Delayed Egress, Control Point
- Door Sensor: N.C
- Operation Delay Time: 0sec, 2.5sec, 5sec, 9sec
- Holding Current: 350mA
- Operating Current: 900mA
