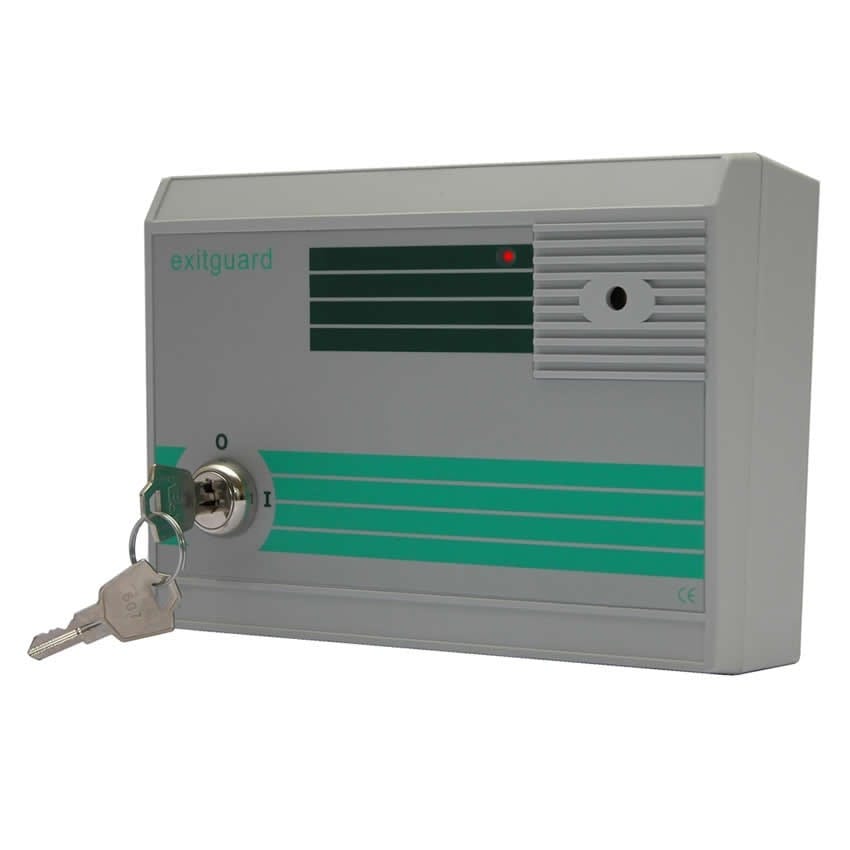

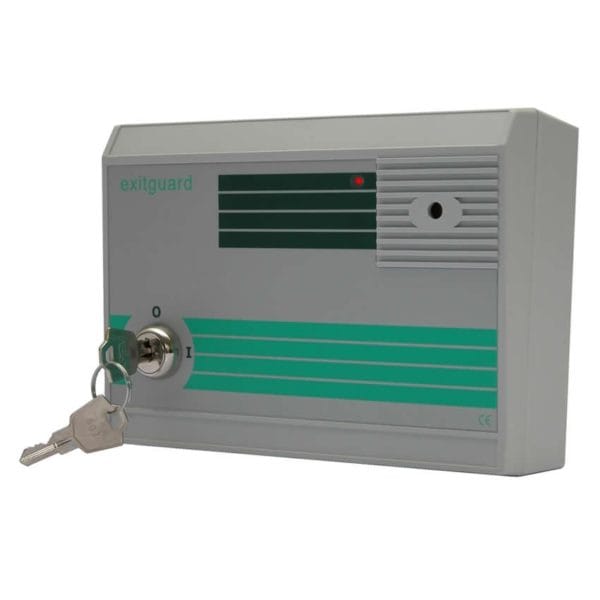

EX106G is mains powered Exitguard door alarm with integral keyswitch – Green

EX106G is mains powered Exitguard door alarm with integral keyswitch – Green Exitguard door alarm with integral keyswitch – Green. Deter the misuse of emergency exit doors with the discrete Green Exitguard. The ideal solution for security of fire exit doors. An integral high power sounder is activated when the door is opened to warn those in the vicinity that security has been breached.Keyswitch Control
175 x 125 x 60 tapering to 50mm
High Power 105db Sounder
Auto Re-arm & Reset Delay (variable)
Optional Door Open Too Long Delay 15 seconds
Visual Alarm Indication
Batteries (where applicable) and door contact suppliedTamper Switch
Separate Tamper Tone with Manual Reduction
Battery Condition Monitor (battery models)
IMPROVED Chime Facility
NEW Selectable Alarm Tones
NEW Simple Function Change by Internal JumpersSupplied with full fitting instructions, including wall fixings, batteries, door contact, 1 metre of cable and door warning label.

Models available are:

EX104 is battery powered – Use where a separate supply of power is not available and the protected door is opened infrequently. Depending on usage the 6 x AA batteries supplied can last up to 3 years. The Exitguard will continue to function for at least two weeks after a battery fault indication.

EX105 is 12vdc powered- Use where the protected door may be opened frequently or the sounder may need to sound for a long time. There is an alarm output relay for connection to remote systems.

EX105GKM is12vdc powered with Key Monitoring – This model provides a key position monitor switch output.
EX105GTKM is12vdc powered with Key Trapped in off and Key Monitoring – This model provides a key position monitor switch output and is also trapped in the off position.
Power supply available separatley. This version cannot be powered from Batteries.

EX106 is mains powered – Use where the protected door may be opened frequently or the sounder may need to sound for a long time. Six AA batteries are supplied to provide power in the event of mains failure. The integral power supply will also provide up to 200ma at 12vdc for ancillary equipment such as remote indicators and sounders.

Select your required option from the drop down above.

Exitguard 100 Series Model Comparison

Code
EX104G/EX104R
EX105G/EX105R
EX105SF
EX106G/EX106R

Battery Monitor
Yes
No
No
Yes

Supply Voltage
7v -14vdc batteries
12vdc -14vdc
12vdc -14vdc
220/240vac

Supply Current
35µA quiescent 80mA max
45mA quiescent 155mA max
45mA quiescent 155mA max
< 0.5A

Batteries(supplied)
6 x AA alkaline
No
No
6 x AA alkaline

105db Sounder
Yes
Yes
Yes
Yes

Alarm Relay Contacts
No
SPCO 1A 30vdc
SPCO 1A 30vdc
SPCO 1A 30vdc

Auxiliary Power O/P
No
No
No
200mA @12vdc
