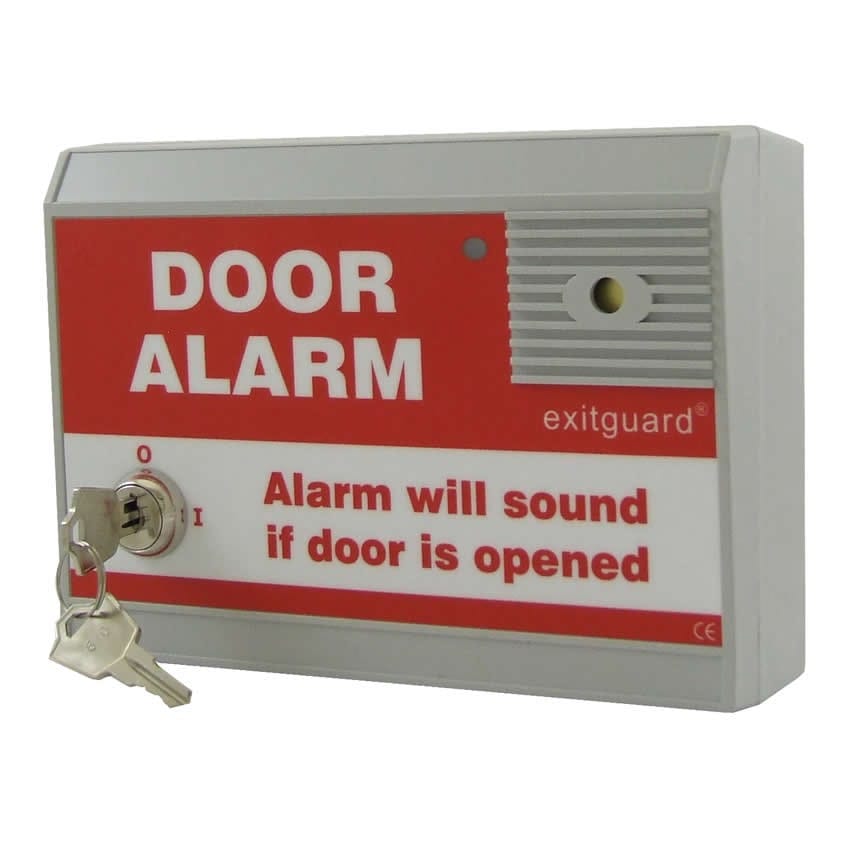

Exitguard Fire Door Alarm with integral keyswitch – Red

Exitguard Fire Door Alarm with integral keyswitch – Red. The Hoyles Exitguard is designed to deter and stop the misuse of emergency exit doors. This emergency exit door alarm is the ideal solution for the security of your fire exit doors. An integral high-power 105dB sounder is activated when the door is opened to warn those in the vicinity that security of the door has been compromised.

The Exitguard fire door alarm can be supplied in battery, 12vdc and mains powered versions. The tamper feature includes sounder reduction via the keyswitch and is configured in such a way that the alarm can be set even if tamper security has been breached.

See a full list of fire exit door alarm system features below:Keyswitch Control
High Power 105db Sounder
Auto Re-arm & Reset Delay (variable)
Optional alarmdelay of 15 seconds
Visual Alarm Indication
Batteries (where applicable) and door contact supplied
Tamper Switch
Separate Tamper Tone with Manual Reduction
Battery Condition Monitor (battery models)
Chime Facility
Selectable Alarm Tones
Simple Function Change by Internal JumpersSupplied with full fitting instructions, including wall fixings, batteries, door contact, 1 metre of cable and door warning label.

Exitguard exit alarm models available are:

EX104 is battery powered – This version should be chosen when a separate supply of power is not available, and the protected door is not opened very often. Depending on usage the 6 x AA batteries can last for up to 3 years. The Red Exitguard emergency exit door alarm will continue to work for at least two weeks after a battery fault indication.

EX105 is 12vdc powered – This fire door alarm should be used when the door you wish to secure and protect might be opened frequently. This version should also be chosen if you need the alarm to sound for a long time.

EX105RKM is12vdc powered with Key Monitoring – This model provides a key position monitor switch output.

EX105RTKM is12vdc powered with Key Trapped in off and Key Monitoring – This fire door alarm provides a key position monitor switch output and is also trapped in the off position.

All 12vdc versions require a power supply which is available separately. Please note, these versions cannot be powered using batteries.

EX106 is mains powered – This Exitguard alarm should be used when a protected door may be opened on a regular basis. It should also be used if you need the alarm to sound for a significant amount of time. Six AA batteries are supplied to provide power should a mains failure occur. The integral power supply will also supply as much as 200ma at 12vdc for ancillary equipment. This includes remote indicators and sounders.

All Exitguards are supplied with fixings, door contact, 1 metre of cable and a door warning sign. The Red Exitguard Fire Door Alarm can also be supplied in a language option of your choice. For a full breakdown of our bespoke product options you can view our custom design page.

We offer a complete range of door security products.

To find more about the Red Exitguard Fire Door Alarm, contact us by calling 01744 886600 or via [email protected]. Our helpful, experienced team will be more than happy to answer any questions you have about any of our door alarm products.

Select your required option from the drop down above.

Exitguard 100 Series Model Comparison

Code
EX104G/EX104R
EX105G/EX105R
EX105SF
EX106G/EX106R

Battery Monitor
Yes
No
No
Yes

Supply Voltage
7v -14vdc batteries
12vdc -14vdc
12vdc -14vdc
220/240vac

Supply Current
35µA quiescent 80mA max
45mA quiescent 155mA max
45mA quiescent 155mA max
< 0.5A

Batteries(supplied)
6 x AA alkaline
No
No
6 x AA alkaline

105db Sounder
Yes
Yes
Yes
Yes

Alarm Relay Contacts
No
SPCO 1A 30vdc
SPCO 1A 30vdc
SPCO 1A 30vdc

Auxiliary Power O/P
No
No
No
200mA @12vdc
