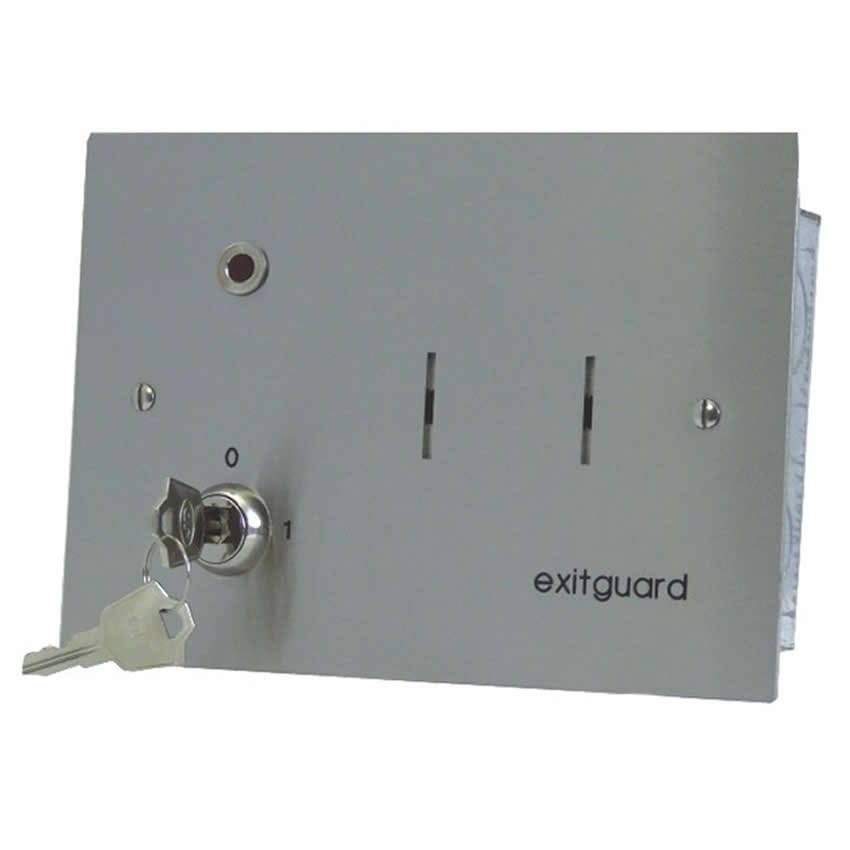

Hoyles EX105SF 12vdc Flush Exitguard alarm c/w integral keyswitch

Hoyles EX105SF 12vdc Flush Exitguard alarm c/w integral keyswitch. Flush mount 12vdc powered Stainless Steel Exitguard Ideally suited for more prestigious buildings or anywhere where flush mount equipment is required. Use where the protected door may be opened frequently or the sounder may need to sound for a long time. This version can also be used as part of a system where it is necessary to interface with other equipment such as intruder alarms or access control systems. There is an alarm output relay for connection to remote systems.
This version cannot be powered from batteries.

Requires a separate 12vdc PSU minimum of 250mA , see PSU-12/2AB, if battery backup is required see BAT12V3300LAKeyswitch Control

12vdc Powered
Alarm Relay Output
High Power Piezo Sounder
Auto Re-arm & Reset Delay (variable)
Optional Door Open Too Long delay 15s
Visual Alarm Indication
Tamper Switch
Separate Tamper Tone with Manual Reduction
IMPROVED Chime Facility
NEW Selectable Alarm Tones
NEW Simple Function Change by Internal Jumpers
Door contact suppliedSupplied with full fitting instructions, including wall fixings, door contact, 1 metre of cable and door warning label.

Exitguard 100 Series Model Comparison

Code
EX104G/EX104R
EX105G/EX105R
EX105SF
EX106G/EX106R

Battery Monitor
Yes
No
No
Yes

Supply Voltage
7v -14vdc batteries
12vdc -14vdc
12vdc -14vdc
220/240vac

Supply Current
35µA quiescent 80mA max
45mA quiescent 155mA max
45mA quiescent 155mA max
< 0.5A

Batteries(supplied)
6 x AA alkaline
No
No
6 x AA alkaline

105db Sounder
Yes
Yes
Yes
Yes

Alarm Relay Contacts
No
SPCO 1A 30vdc
SPCO 1A 30vdc
SPCO 1A 30vdc

Auxiliary Power O/P
No
No
No
200mA @12vdc
