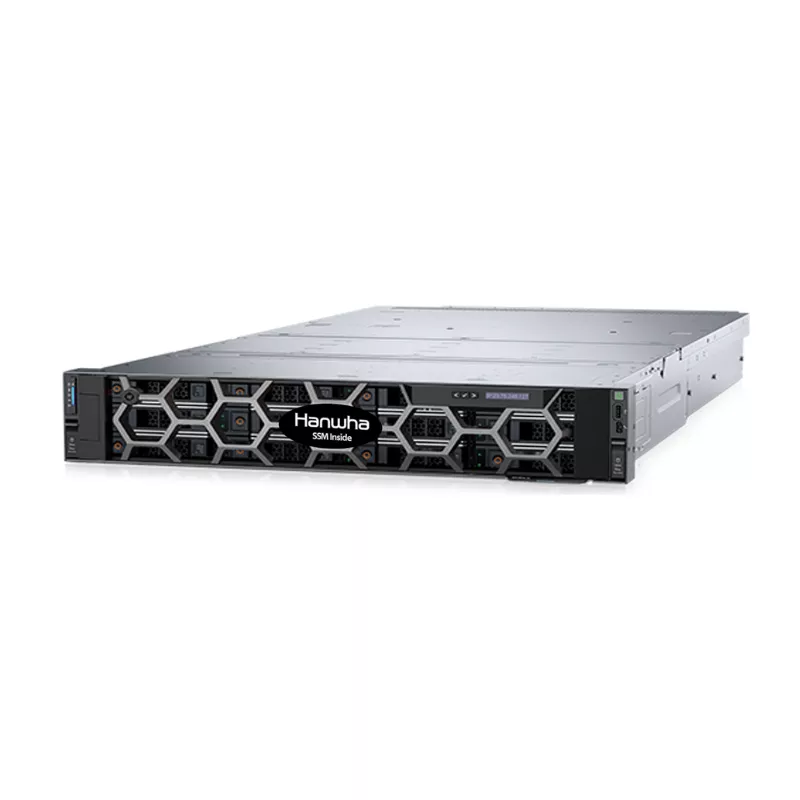

Hanwha Vision PRO-224 Series 2U 24-Bay Video Recording Server (Single Intel Xeon Silver 4410Y)

Name: Hanwha Vision PRO-224 Series 2U 24-Bay Video Recording Server (Single Intel Xeon Silver 4410Y)
SKU: SS156022
Price: 22869.62 AED
Availability: InStock

See all products from hanwha-vision

AED 22,869.62 VAT included

Compare

Product Code : SS156022 Brand: Hanwha vision Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

The PRO-224 Series from Hanwha Vision is an enterprise-class 2U rackmount video recording server offering a full 24-bay storage chassis, designed for heavy duty surveillance, NVR and VMS applications. Equipped with a single Intel Xeon Silver 4410Y processor (12 cores/24 threads) and built for video‐centric workloads, this server supports SATA & SAS drives, RAID levels 0/1/5/6/10, and is pre-installed with Windows Server 2022 IoT. With hot-swap drive bays, large storage capacity (up to ~480 TB depending on drive size) and optional redundant power, it serves demanding security infrastructures and recording environments.

Features

Single Intel Xeon Silver 4410Y Scalable Processor — 12 cores / 24 threads, 2.0GHz base clock, up to 3.9GHz turbo.
2U rackmount form-factor with 24 hot-swap drive bays (3.5″ or 2.5″ depending on config) for large storage density.
Supports SATA and SAS drives, giving flexibility for different performance tiers.
RAID support: RAID 0, 1, 5, 6, 10 for data protection and recording reliability.
Pre-installed Windows Server 2022 IoT, ready for video management software and recording platforms.
Optional redundant power supply unit (depending on configuration) for higher availability.
Tailored for video recording/NVR environments: supports large throughput and many camera channels.
Enterprise grade build quality: hot-swap drives, enterprise hardware, designed for 24/7 operation.
Full integration with Hanwha Vision appliances and ecosystem for surveillance applications.
Upgradable and scalable: drive bays allow expansion of raw storage as needs grow (depending on drive size and RAID configuration).

Specifications

Processor: Intel Xeon Silver 4410Y — 12 cores / 24 threads, base 2.00GHz, turbo up to 3.90GHz.
Chassis / Bays: 2U rackmount, 24 drive bays (hot-swap).
Storage Capacity: Supports up to ~480TB raw (depending on drive size/configuration) as per series spec.
Supported Drive Types: SATA & SAS (typically 3.5″/2.5″).
RAID Support: 0, 1, 5, 6, 10.
Operating System / Software: Windows Server 2022 IoT pre-installed.
Backplane / Interfaces: Enterprise grade backplane with hot-swap bays; enterprise network and storage interfaces (details depend on config).
Power / Redundancy: Supports redundant power supply options (depending on model).
Intended Use Class: Video recording/NVR, large‐scale surveillance deployments, 24/7 operation.
Scalability Considerations: Support for expansion of raw storage, integration into Hanwha Vision appliance ecosystem.
