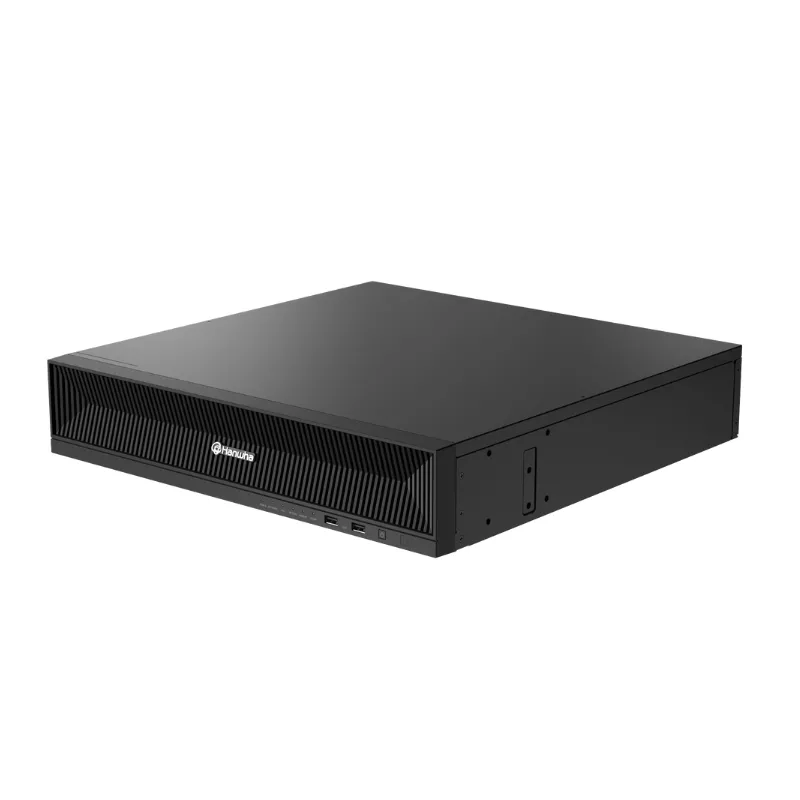

Hanwha XRN-3220B2 32-Channel 8K Network Video Recorder (NVR, 8 HDD Bays)

Name: Hanwha XRN-3220B2 32-Channel 8K Network Video Recorder (NVR, 8 HDD Bays)
SKU: SS156021
Price: 9871.05 AED
Availability: InStock

See all products from hanwha-vision

AED 9,871.05 VAT included

Compare

Product Code : SS156021 Brand: Hanwha vision Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

The Hanwha XRN-3220B2 (and RAID-enabled XRN-3220RB2 variant) is a high-performance 32-channel network video recorder designed for demanding IP surveillance systems. With support for 8K / 32 MP recording and display, 8 hot-swappable SATA bays (up to 80 TB), and a high throughput capacity of 520 Mbps, it can handle multi-camera HD/4K/8K installations. It supports advanced features such as RAID-5/6 (on the “RB2” variant), ARB (Automatic Recovery Backup), failover (N+1), dual HDMI outputs, AI search (for compatible Wisenet cameras), and a robust cybersecurity suite including TPM and NDAA compliance. The device is built for scalability, reliability, and seamless integration into Hanwha Vision’s camera ecosystem.

Features

32-channel support for simultaneous IP camera input.
8K / 32 MP recording & display capability for ultra-high resolution.
Eight SATA HDD bays, supporting up to 80 TB (10 TB per drive) for large video retention.
High throughput: up to 520 Mbps recording / up to 200 Mbps playback.
Dual HDMI outputs (HDMI1 & HDMI2) for flexible local display options.
RAID-5 / RAID-6 / failover (N+1) support in RB2 variant for data redundancy.
Smart AI search / analytics (for Wisenet AI-compatible cameras).
Web-based management & UI features: dynamic layout, virtual channel view, event setup, camera palette.
Cybersecurity features: TPM, NDAA compliance, secure protocols.
Fisheye dewarping, dual streaming, iSCSI support & backup options for flexible installations.

Specifications

Channels / Input: 32 IP camera channels.
Resolution Support: Up to 32 MP (8K) down to CIF.
Throughput / Bandwidth: Up to 520 Mbps (distributed mode), ~300 Mbps (normal mode).
Playback Bandwidth: Up to 200 Mbps (for simultaneous playback)
Storage / HDD Support: Supports SATA 8 drives, hot-swap, up to 80 TB total.
Compression / Codecs: H.265, H.264, MJPEG supported.
Display / Output: HDMI1 up to 3840×2160@30 Hz, HDMI2 up to 1920×1080@60 Hz.
Event / Trigger Inputs: Alarm I/O, camera analytics (motion, defocus etc.), events & bookmarks.
Network & Interfaces: iSCSI support, P2P QR code setup, SUNAPI / ONVIF protocol support.
User / Management / Security: Max 4 users (1 local, 3 remote), fisheye dewarping, ARB, TPM, NDAA compliance.
