Hoyles Boxed Multi Function Timer Relay
See all products from hoylesAED 602.70 VAT included

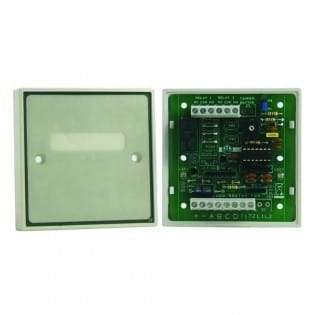

Hoyles Boxed Multi Function Timer Relay. Mounted in a standard white plastic single gang enclosure complete with front and back acting tamper switch. A unique labelling system allows for the onsite labelling of the enclosure. Universal timer module with two timing ranges 1 – 60 sec’s & 1 – 60 mins. Volt free DPCO relay contacts are rated at 1A/30vdc resistive. Multiple trip modes. A-stable operation for pulsing sounders etc. This versatile unit can also be used as a commutating relay i.e. one pulse energises the relay and a further pulse de-energises the relay.
Product Code : SS11328
Brand: Hoyles
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Hoyles Boxed Multi Function Timer Relay. Mounted in a standard white plastic single gang enclosure complete with front and back acting tamper switch. A unique labelling system allows for the onsite labelling of the enclosure. Universal timer module with two timing ranges 1 – 60 sec’s & 1 – 60 mins. Volt free DPCO relay contacts are rated at 1A/30vdc resistive. Multiple trip modes. A-stable operation for pulsing sounders etc. This versatile unit can also be used as a commutating relay i.e. one pulse energises the relay and a further pulse de-energises the relay.S351-B
Requires 12vdc supply at 80mA
Contacts Rated at 1amp
Six mounting holes provided for more permanent fixing
Knock outs for cable entry
Intended for internal use only
S351-B/24
Requires 24vdc supply at 85mA
Contacts Rated at 1amp
Six mounting holes provided for more permanent fixing
Knock outs for cable entry
Intended for internal use only
Relay Dimensions – L80mm x W74mm x D16mm
Box Dimensions – L87mm x W87mm x D36mm
