Hoyles Multi Function Timer Relay
See all products from hoylesAED 472.50 VAT included

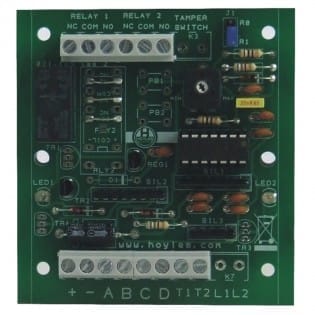

Hoyles Multi Function Timer Relay. Universal timer relay module with two timing ranges 1 – 60 sec’s & 1 – 60 mins. Volt free DPCO relay contacts are rated at 1A/30vdc resistive. Multiple trip modes. A-stable operation for pulsing sounders etc. This versatile unit can also be used as a commutating relay ie one pulse energises the relay and a further pulse de-energises the relay.
Product Code : SS11327
Brand: Hoyles
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Hoyles Multi Function Timer Relay. Universal timer relay module with two timing ranges 1 – 60 sec’s & 1 – 60 mins. Volt free DPCO relay contacts are rated at 1A/30vdc resistive. Multiple trip modes. A-stable operation for pulsing sounders etc. This versatile unit can also be used as a commutating relay ie one pulse energises the relay and a further pulse de-energises the relay.S351 and S351/24
S351 Requires 12vdc supply at 80mA
S351/24 Requires 24vdc supply at 85mA
Contacts Rated at 1amp
Six mounting holes provided for more permanent fixing
Screw terminals for easy connectionDimensions – L80mm x W74mm x D16mm
