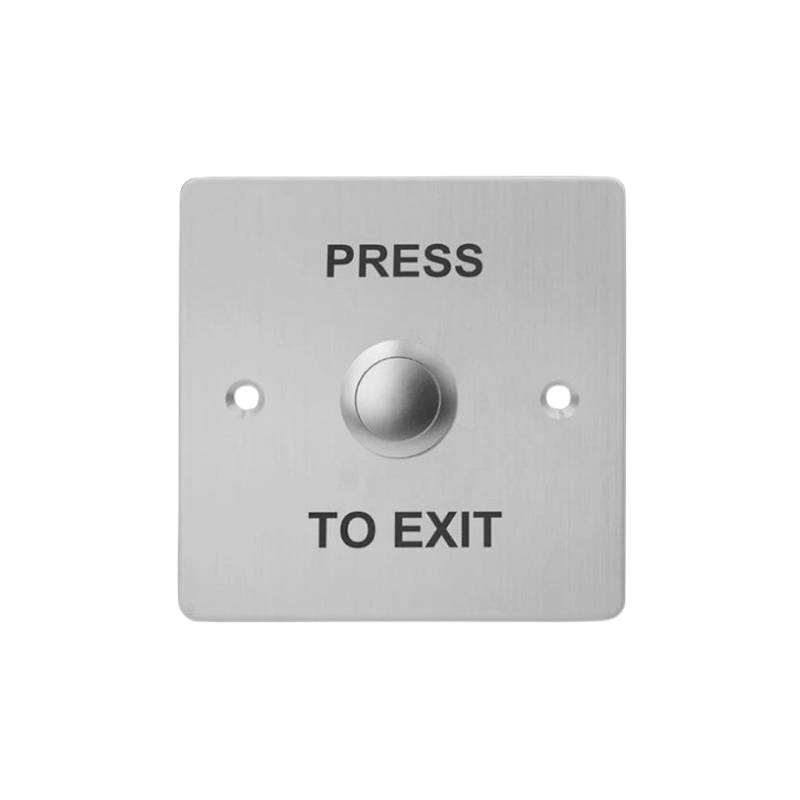

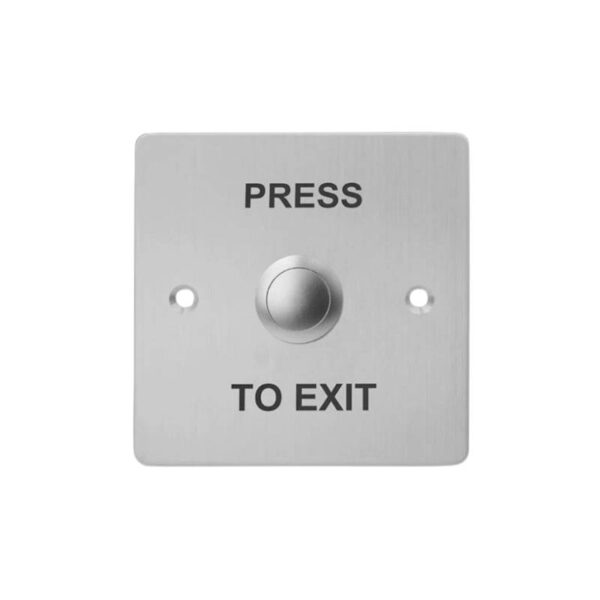

Quant – Fire Rated Stainless Steel Door Push Release Exit Button, 86mm x 86mm – QFR-K14B
AED 108.68 VAT included
Quant – Fire Rated Stainless Steel Door Push Release Exit Button, 86mm x 86mm – QFR-K14B
Product Code : SS154452
Brand: Quant
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The QFR-K14B is a fire-rated stainless steel door release exit button designed for use in access control systems. This durable button is made from high-quality stainless steel with a panel thickness of 1.7mm, ensuring long-lasting performance. It supports multiple output contacts, including Normally Open (NO), Normally Closed (NC), and Common (COM), making it versatile for various door release applications. Additionally, the QFRK14B is fire-rated, providing enhanced safety in emergency situations.
Features
- Durable Construction: Made from high-grade stainless steel, providing resistance to wear and ensuring longevity.
- Flexible Output Options: Supports NO, NC, and COM output contacts, allowing integration with various access control systems.
- Compact Design: With dimensions of 86mm x 86mm, the button is designed to fit neatly into standard installations.
- Reliable Operation: Built for consistent performance, ensuring reliable door release functionality in access control setups.
- Easy Installation: The simple design allows for quick and secure installation in a variety of environments.
- Fire Rated: Certified for use in fire-rated installations, offering enhanced safety
Specifications
- Brand: Quant
- Model: QFR-K14B
- Material Panel: Stainless steel, Button: Steel
- Current Rating: 3A, 36VDC Max
- Output Contact: NO/NC/COM
- Mechanical Life: 1000000 tested
- Operating Temperature: -10? ~ 55°C (14°F-131°F)
- Voltage: DC12
- Special Feature: Fire Rated
- Dimension: 86mm x 86mm x 1.7mm thickness
- Certifications: UL, CE, BS EN 15725: 2010; EN 1634
- Weight: 0.14kg
