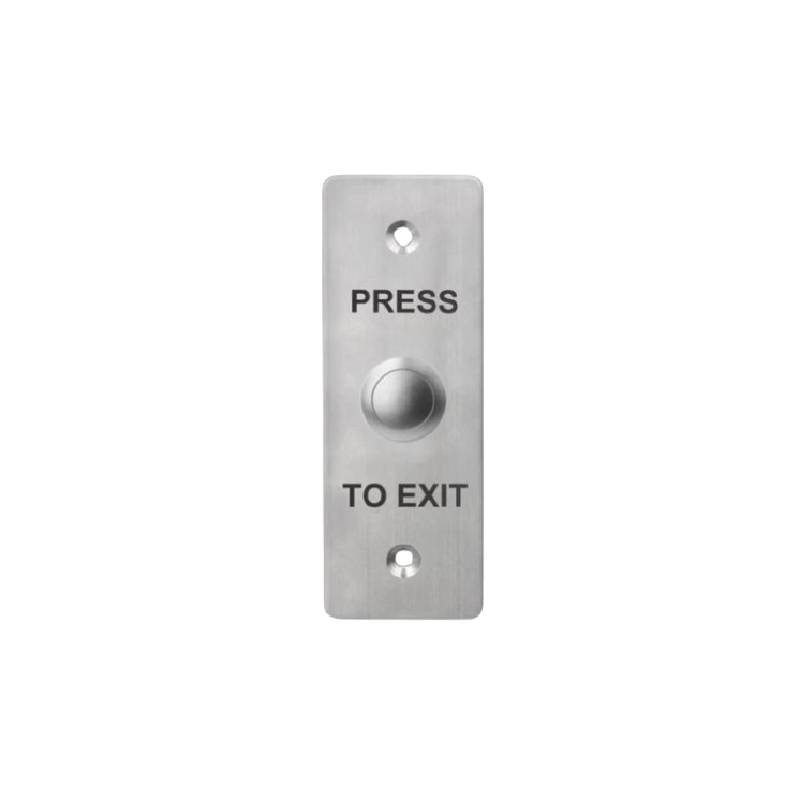

Quant – Fire Rated Stainless Steel Door Push Release Exit Button, 115mm x 40mm – QFR-K15AD
AED 108.68 VAT included
Quant – Fire Rated Stainless Steel Door Push Release Exit Button, 115mm x 40mm – QFR-K15AD
Product Code : SS154453
Brand: Quant
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The Q-K15AD is a stainless steel door release exit button, designed for use in access control systems. The button is constructed from high-quality & Fire Rated stainless steel, with a panel thickness of 1.7mm, ensuring durability and reliability. It features a compact design with dimensions of 115mm x 40mm and supports multiple output contacts, including Normally Open (NO), Normally Closed (NC), and Common (COM), making it suitable for a variety of door release applications.
Features
- Durable Construction: Made from high-grade stainless steel, providing resistance to wear and ensuring longevity.
- Fire Rated: Certified for use in fire-rated installations, offering enhanced safety.
- Flexible Output Options: Supports NO, NC, and COM output contacts, allowing integration with various access control systems.
- Compact Design: The button is designed to fit neatly into standard installations, ensuring a clean and professional look.
- Reliable Operation: Built for consistent performance, ensuring reliable door exit functionality in access control setups.
- Easy Installation: The simple design allows for quick and secure installation in a variety of environments.
Specifications
- Brand: Quant
- Model: QFR-K15AD
- Material: Stainless Steel
- Current Rating: 3A, 36VDC Max
- Output Contact: NO/NC/COM
- Mechanical Life: 1000000 tested
- Operating Temperature: -20°C to 55°C (-4°F to 131°F)
- Weight: 0.15kg
- Special Feature: Fire Rated
- Certifications: UL, CE, BS EN 15725: 2010; EN 1634
- Dimension: 115mm x 40mm
- Thickness: 1.7mm
