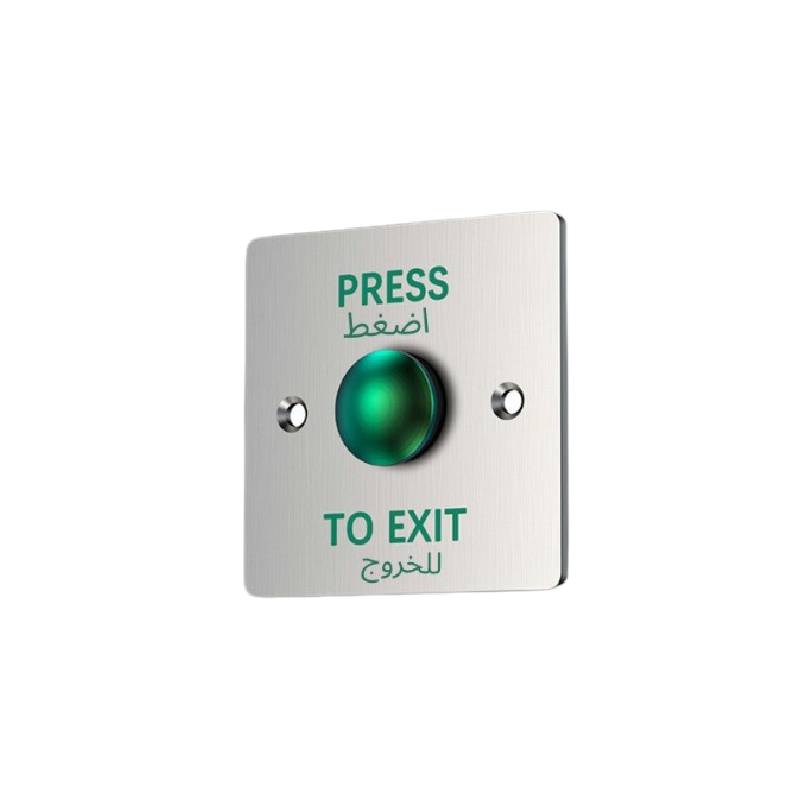

Quant – Weatherproof Stainless Steel Push Release Exit Button, 86mm x 86mm x 21mm – Q-WPK14BAR
AED 57.96 VAT included
Quant – Weatherproof Stainless Steel Push Release Exit Button, 86mm x 86mm x 21mm – Q-WPK14BAR
Product Code : SS154454
Brand: Quant
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The Q-WPK14BAR is a crucial component in access control systems, designed to facilitate easy and safe egress. It is made of high-quality stainless steel and has a compact design with a panel size of 86 x 86 x 21 mm. This button can be used when doors do not have traditional handles, allowing users to simply press to open. It is connected to the electric lock on the door, offering reliable and convenient operation. The button supports multiple output contacts (NO/NC/COM) for flexibility, operates on 12-24VDC, and is IP67 rated, ensuring durability and waterproof capability for indoor and outdoor use. The Q-WPK14BAR also features a specialized version tailored for the Middle East, incorporating region-specific standards and requirements to ensure compatibility with local access control needs.
Features
- High Durability: Constructed from 1.8 mm thick stainless steel, ensuring robust performance in a variety of environments.
- Flexible Power Compatibility: Operates on 12V-24V DC, providing compatibility with different power systems.
- Versatile Contact Output: Offers NO/NC/COM contact outputs, allowing integration with various types of access control systems.
- Compact Design: With its size of 86 x 86 x 21 mm, it is suitable for both small and large door installations.
- Waterproof and Weather-Resistant: Rated IP67, making it ideal for outdoor installations and ensuring resistance to harsh conditions.
- Region-Specific Adaptability: Embedded Arabic Text design for Middle East
Specifications
- Brand: Quant
- Model: Q-WPK14BAR
- Panel Material: Stainless Steel
- Current Rating: 3A @ 36V DC (max)
- Working Voltage: 12V-24V DC
- Contact Output: NO/NC/COM (both ends)
- IP Rating: IP67
- Operating Temperature: -20?+55?(14-131F)
- Operating Humidity: 0-95% (Relative Humidity)
- Mechanical Life: 500,000 tests
- Middle East Feature: Embedded Text with Arabic translation
