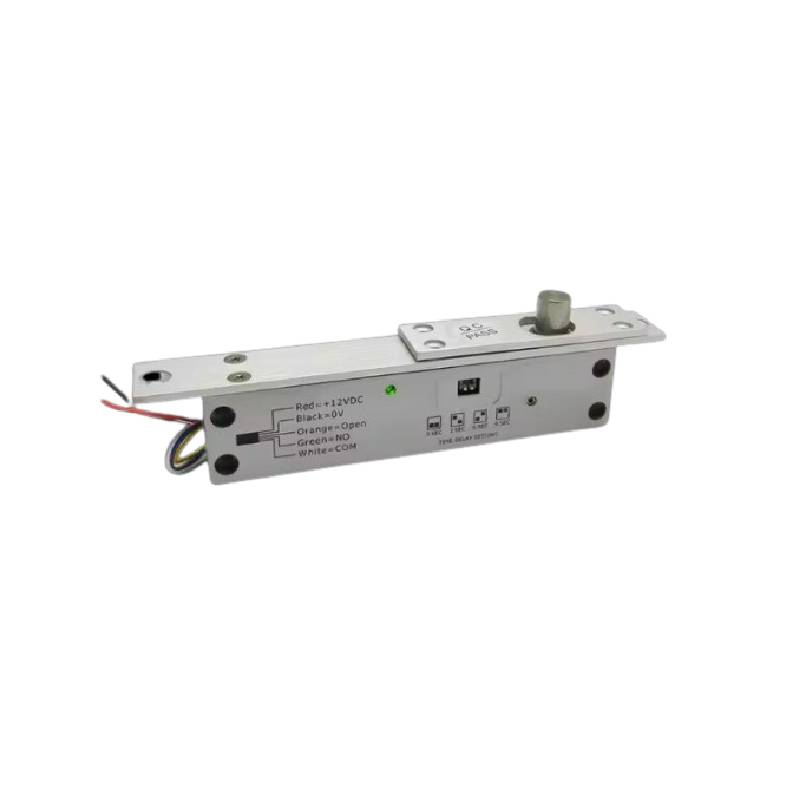

Quant – Wire Low Temperature Electric Drop Bolt Lock, 200mm x 34mm x 41mm – Q-202LSD
AED 170.26 VAT included
Quant – Wire Low Temperature Electric Drop Bolt Lock, 200mm x 34mm x 41mm – Q-202LSD
Product Code : SS154451
Brand: Quant
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The Q-202LSD Electric Dropbolt Lock is a high-performance locking device designed for secure access control. Featuring low temperature operation and advanced functionalities, this lock is equipped with a delay timer and dual signal output for enhanced control. It is ideal for applications requiring a reliable locking mechanism with minimal energy consumption.
Features
- Low Temperature Operation: Ensures reliable performance even in low-temperature environments, reducing the risk of malfunction.
- Adjustable Delay Timer: Customizable delay settings (0, 3, 6, 9 seconds) provide flexible control over access timing for different security needs.
- Dual Signal Output: Provides real-time monitoring with door open and lock signal outputs, enhancing security management.
- Flexible Installation: Supports NO/NC/COM contacts for various installation configurations, allowing compatibility with different access control systems.
- Durable Construction: Stainless steel dropbolt with a 15.5mm diameter offers superior strength and resistance to tampering.
- Efficient Power Usage: Operates at 12V with low steady current (0.09A), minimizing energy consumption while maintaining high performance.
Specifications
- Brand: Quant
- Model: Q-202LSD
- Material: Metal, Stainless steel
- Lock Bolt: 15.5mm diameter
- Extension Length: 15mm
- Operating Voltage: 12V
- Starting Current: 0.8A
- Steady Current: 0.09A
- Delay Timer: Adjustable (0, 3, 6, 9 seconds)
- Signal Output: Door open signal, lock signal
- Contacts: NO/NC/COM
- Dimensions: 200 x 34 x 41mm
