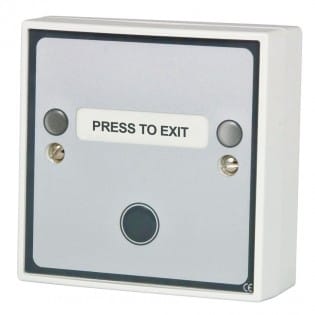

Hoyles S1706PG Multi function Press to Exit button c/w green LED & sounder

Hoyles S1706PG Multi function Press to Exit button c/w green LED & sounder. A wall mounted button in white ABS complete with a single gang low profile mounting box.
This is a MULTI-FUNCTION button that provides DPCO contacts rated at 1A 30vdc for use with equipment such as maglocks and door strikes. The function of the button can be changed. (Momentary, Latching, Delayed latch and Commutate) Two LEDs and an integral sounder are provided. The LEDs indicate when relay is switched, the sounder bleeps as relay changes.
This product requires a continuous supply of 12vdc.Specification

Led Current – 40mA @12vdc
Sounder Current – 20mA@12vdc
Switch Contacts – DPCO 1A 30vdc
Visual Indication – 2 x high brightness green LEDs
Integral Sounder
Tamper – N/A
Material – White ABS
Weight – 0.13kg
87 x 87 x 36mm (Surface mount)
IP Rating – IP44 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
Back box supplied for surface mount
Approvals – CE and RoHs compliant
Can be Semi Flushed onto standard flush back box (Not supplied)
Mark resistant decal
Tactile button
