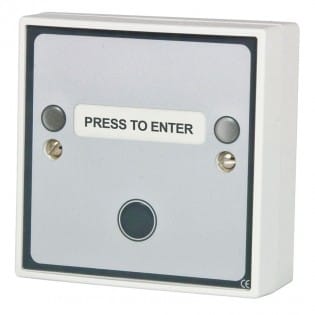

Hoyles S1707PG Multi function Press to Enter button c/w green LED & sounder
See all products from hoylesAED 360.00 VAT included
Hoyles S1707PG Multi function Press to Enter button c/w green LED & sounder. A wall mounted ENTER button in white ABS complete with a single gang mounting box. This is a MULTI-FUNCTION button that provides DPCO contacts rated at 1A 30vdc for use with maglocks and door strikes. The function of the button can be changed. (Momentary, Latching, Delayed latch and Comutate) Two green LEDs and an integral sounder are provided . This product requires a continuous supply of 12vdc.
Product Code : SS11281
Brand: Hoyles
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Hoyles S1707PG Multi function Press to Enter button c/w green LED & sounder. A wall mounted ENTER button in white ABS complete with a single gang mounting box. This is a MULTI-FUNCTION button that provides DPCO contacts rated at 1A 30vdc for use with maglocks and door strikes. The function of the button can be changed. (Momentary, Latching, Delayed latch and Comutate) Two green LEDs and an integral sounder are provided . This product requires a continuous supply of 12vdc.Specification
Quiescent Current – 30mA @12vdc
Operating Current – 60mA @12vdc
Switch Contacts – DPCO 1A 30vdc
Visual Indication – 2 x high brightness green LEDs
Integral Sounder
Tamper – N/A
Material – White ABS
Weight – 0.12kg
87 x 87 x 36mm (Surface mount)
IP Rating – IP44 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
Back box supplied for surface mount
Approvals – CE and RoHs compliant
Can be Semi Flushed onto standard flush back box (Not supplied)
Mark resistant decal
Tactile button
Features
Specifications
Questions & Answers
Questions and answers of the customers
There are no questions yet. Be the first to ask a question about this product.
Reviews (0)
Reviews
