Hoyles S1709prg Two position keyswitch with one Red and one Green LED

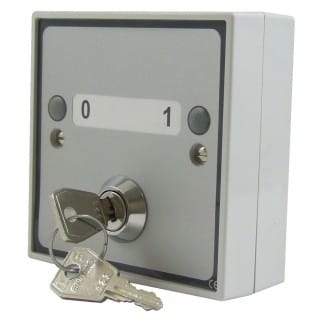

Hoyles S1709prg Two position keyswitch with one Red and one Green LED. Two position keyswitch mounted on a single gang white ABS plate. Two LEDs are provided, one red and one green, current limited for 12vdc operation. The decal is shown labelled O and 1, but would normally be supplied blank. The keyswitch has DPCO contacts rated at 1A 30vdc. Suitable for maglocks and door strikes.Specification

Led Current – 17.5mA per LED @12vdc
Sounder Current – N/A
Switch Contacts – 1A 30vdc
Visual Indication – 2 x LEDs one red one green
Integral Sounder Level – N/A
Tamper – N/A
Material – White ABS
Weight – 0.17kg
IP Rating – IP44 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
Approvals – CE and RoHs compliant
Back box supplied for surface mount

87mm x 87mm x 36mm (Surface mount)
Can be Semi Flushed onto standard flush back box (Not supplied)
Mark resistant decal
Two position keyswitch – removeable in both positions
Two high brightness LEDs
