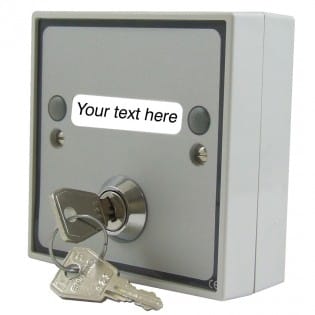

Hoyles S1709prgtc24 Keyswitch with custom text Red and Green 24vdc LEDs

Hoyles S1709prgtc24 Keyswitch with custom text Red and Green 24vdc LEDs. Two position keyswitch mounted on a single gang white ABS plate. Two LEDs are provided, one red and one green, current limited for 24vdc operation. Labeled with text of your choice, please specify when ordering. The keyswitch has DPCO contacts rated at 1A 30vdc. Suitable for maglocksand door strikes.Specification

Led Current – 17.5mA per LED @24vdc
Sounder Current – N/A
Switch Contacts – DPCO 1A 30vdc
Visual Indication – 2 x LEDs one red one green
Integral Sounder Level – N/A
Tamper – N/A
Material – White ABS
Weight – 0.17kg
IP Rating – IP44 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
Approvals – CE and RoHs compliant
87mm x 87mm x 36mm (Surface mount)
Back box supplied for surface mount

Can be Semi Flushed onto standard flush back box (Not supplied)
Labeled with text of your choice

Mark resistant decal

Two position keyswitch – removeable in both positions

Two high brightness LEDs
