Hoyles S1711S-ATS Mushroom latching button twist release c/w anti tamper screws
See all products from hoylesAED 747.60 VAT included

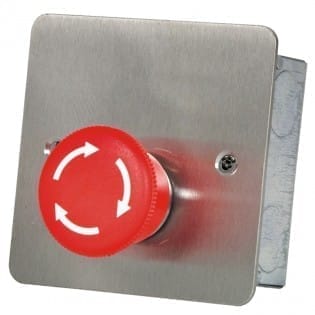

Hoyles S1711S-ATS Mushroom latching button twist release c/w anti tamper screws. Mushroom headed latching button with twist to release. Supplied with normally closed and normally open contacts. This item is supplied complete with 2 x pin-hex anti tamper screws.
Product Code : SS11312
Brand: Hoyles
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Hoyles S1711S-ATS Mushroom latching button twist release c/w anti tamper screws. Mushroom headed latching button with twist to release. Supplied with normally closed and normally open contacts. This item is supplied complete with 2 x pin-hex anti tamper screws.Specification
Led Current – N/A
Switch Contacts – 1 x N/O 1 x N/C both 500mA @30vdc
Sounder Current – N/A
Visual Indication – N/A
Integral Sounder Level – N/A
Tamper – N/A
Material – 304 Grade Stainless Steel
Dimensions – 86mm x 86mm x 2mm – Facia
47mm galvanised back box supplied
Surface mounted using part no. S0610-50 listed below
Weight – 0.34kg
IP Rating – IP65 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
Approvals – CE and RoHs compliant
Features
Specifications
Questions & Answers
Questions and answers of the customers
There are no questions yet. Be the first to ask a question about this product.
Reviews (0)
Reviews
