Hoyles S1711SL Mushroom headed latching button with LED Twist release
See all products from hoylesAED 736.05 VAT included

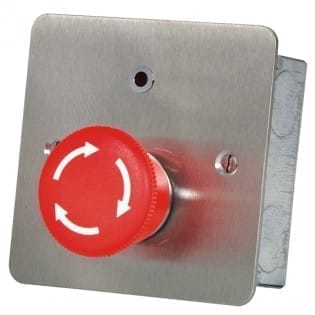

Hoyles S1711SL Mushroom headed latching button with LED Twist release. Mushroom headed latching button with twist to release, a 5mm flat red LED in a polished chrome bezel configured for 12vdc operation is also fitted to the single gang stainless steel plate. Supplied with normally closed and normally open contacts.
Product Code : SS11313
Brand: Hoyles
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Hoyles S1711SL Mushroom headed latching button with LED Twist release. Mushroom headed latching button with twist to release, a 5mm flat red LED in a polished chrome bezel configured for 12vdc operation is also fitted to the single gang stainless steel plate. Supplied with normally closed and normally open contacts.Specification
Led Current – 20mA @ 12vdc
Switch Contacts – 1 x N/O 1 x N/C both 500mA @30vdc
Sounder Current – N/A
Visual Indication – 1 x Red LED
Integral Sounder Level – N/A
Tamper – N/A
Material – 304 Grade Stainless Steel
Dimensions – 86mm x 86mm x 2mm – Facia
47mm galvanised back box supplied
Surface mounted using part no. S0610-50 listed below
Weight – 0.34kg
IP Rating – IP65 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
Approvals – CE and RoHs compliant
