Hoyles S1729ST1 Keyswitch trapped in the ON position with two LEDs
See all products from hoylesAED 712.95 VAT included

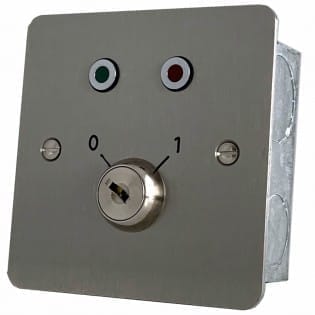

Hoyles S1729ST1 Keyswitch trapped in the ON position with two LEDs. Flush fitting stainless steel engraved two position keyswitch with one red and one green flat LED in chrome bezels. This is a double pole unit with change over contacts. The keyswitch on this version is trapped in the 1 position.
Separate terminals are provided for the LEDs. The LED current limit resistor is provided for 12 vdc operation.
Product Code : SS11228
Brand: Hoyles
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Hoyles S1729ST1 Keyswitch trapped in the ON position with two LEDs. Flush fitting stainless steel engraved two position keyswitch with one red and one green flat LED in chrome bezels. This is a double pole unit with change over contacts. The keyswitch on this version is trapped in the 1 position.
Separate terminals are provided for the LEDs. The LED current limit resistor is provided for 12 vdc operation.Specification
Led Current – 20mA per LED @12vdc
Switch Contacts – DPCO 2A @30vdc
Sounder Current – N/A
Visual Indication -1 x red LED 1 x green LED
Integral Sounder Level – N/A
Tamper – N/A
Material – 304 Grade Stainless Steel
Dimensions – 86mm x 86mm x 2mm – Facia
38mm galvanised back box supplied
Surface mounted using part no. S0610 listed below
Weight – 0.28kg
IP Rating – IP65 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
Approvals – CE and RoHs compliant
