Hoyles S1729S Keyswitch with two LEDs one red one green
AED 712.95 VAT included
Next product
Hoyles S1720IN Engaged / Vacant Indicator
AED 509.25 VAT included
Hoyles S1782PGR 8 way Indicator with 4 green and 4 red LEDs plus sounder
See all products from hoylesAED 730.80 VAT included

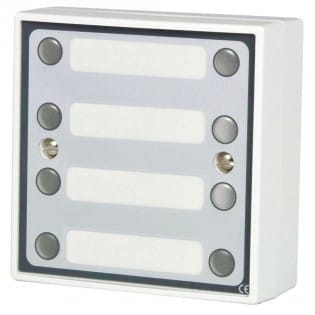

Hoyles S1782PGR 8 way Indicator with 4 green and 4 red LEDs plus sounder. A wall mounted 8 way Indicator unit with sounder in white ABS complete with a single gang low profile mounting box and a scratch resistant decal. There are separate drive inputs for both the individual lights and the sounder. There are 4off green and 4off red LEDs. The LEDs and sounder current limit resister is provided for operation at 12vdc.
We will label the facia with words of your choice or supply it blank. Please see Technical Info tab for “Text Requirements” download sheet.
Product Code : SS11241
Brand: Hoyles
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Hoyles S1782PGR 8 way Indicator with 4 green and 4 red LEDs plus sounder. A wall mounted 8 way Indicator unit with sounder in white ABS complete with a single gang low profile mounting box and a scratch resistant decal. There are separate drive inputs for both the individual lights and the sounder. There are 4off green and 4off red LEDs. The LEDs and sounder current limit resister is provided for operation at 12vdc.
We will label the facia with words of your choice or supply it blank. Please see Technical Info tab for “Text Requirements” download sheet.Specification
Led Current – 17.5mA@12vdc
Sounder Current – 25mA@12vdc
Switch Contacts – N/A
Visual Indication – 8 x High brightness LEDs 4 x green 4 x red
Integral Sounder Level – 70db @10cm
Tamper – N/A
Material – White ABS
Weight – 0.12kg
87mm x 87mm x 36mm (Surface mount)
Back box supplied for surface mount
Approvals – CE and RoHs compliant
Can be Semi Flushed onto standard flush back box (Not supplied)
Mark resistant decal
IP Rating – IP44 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is requiredNOTE: These items are for 12 vdc operation. 24vdc is possible to special order – add suffix 24 eg. S1782R24
