Hoyles Saunakit1 Emergency button kit for use in Sauna’s and Steam Room’s

Hoyles Saunakit1 Emergency button kit for use in Sauna’s and Steam Room’s. Saunas and Steam Rooms present a challenging environment to install reliable emergency call systems. This emergency button kit uses an air operated switch which contains no electrical or mechanical components within the sauna or steam room, therefore nothing to corrode or otherwise be damaged by continuous high temperatures.

The air tube connects the red surface mount air button inside the hot area to a waterproof enclosure outside which contains the air operated switch. This switch has double pole changeover electrical contacts for onward connection to an alarm system. The air switch contains an automatic bleed valve which compensates for any changes in temperature.
Example System Configuration:
Operating the air button pushes air down the tube to the air switch.
The air tube connects the air button inside the hot area to the waterproof enclosure containing the air switch on the outside of the hot area.
Once activated the double pole changeover contacts allow onward connection to a 8581750/HB 32 Tone
Sounder Strobe and alarm system – such as our Single Zone A600P or Multi zone AA31110D controller.
Pushing and holding the red air button within the hot area for 5 seconds or more will reset the alarm and sounder strobe.

Specification

Switch Contacts – 2 x DPCO – 5A @30vdc
Material – ABS plastic
Kit Dimensions (boxed) – 300mm x 230mm x 260mm
Surface mounted
Weight – 1 kg
IP Rating – IP65
Approvals – CE and RoHs compliantCable/pipe glands are provided for water tight connection of the pipe and cables as necessary.

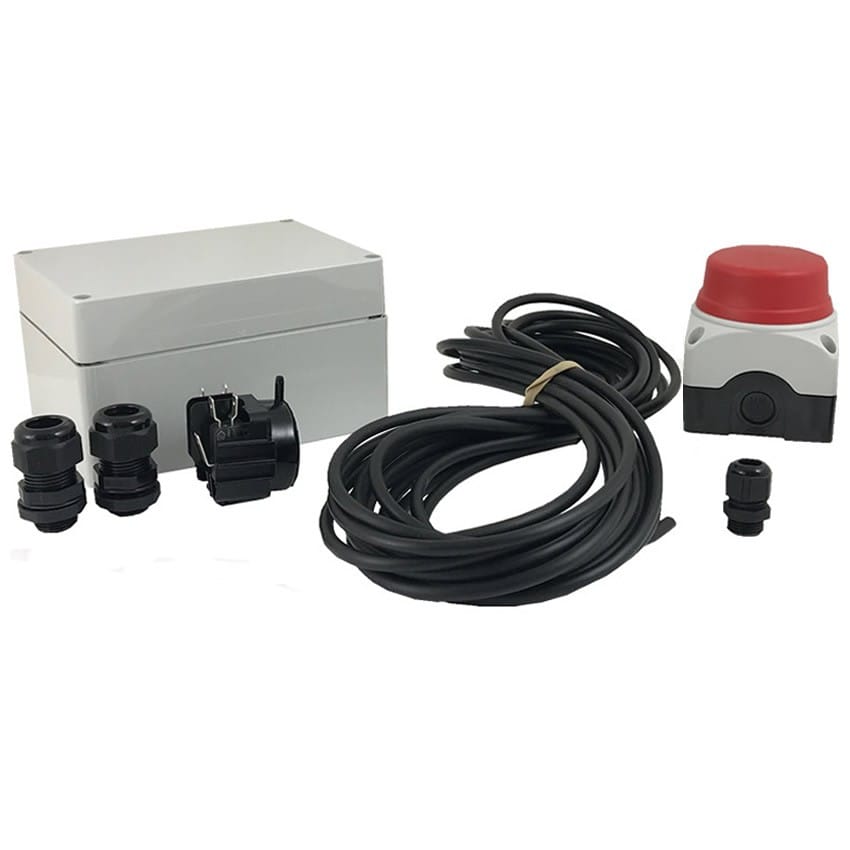

This kit includes:

1 x Red surface mount air button

3 x IP68 cable gland

1 x Double pole double throw momentary air switch

1 x 10m of black air tube

1 x IP65 Enclosure for air switch
