Hoyles VQ750i Basic 8 LED indicator
AED 1,392.30 VAT included
Next product
Hoyles S319i Double Gang Set Indicator Plate
AED 744.45 VAT included
Hoyles VQ750 Multizone indicator for use as SET/Unset indicator etc..
See all products from hoylesAED 1,392.30 VAT included
Hoyles VQ750 Multizone indicator for use as SET/Unset indicator etc… This is a simple indicator for use with intruder alarms and other systems to indicate, for example, the ON/OFF status of a collection of intruder alarms at a remote point.
Unlike our MULTIGUARD indicators there are no control functions or audible warnings.
The unit requires a constant 12vdc supply (24vdc option available).
There are 7 red LEDs which can each be illuminated by applying a negative to the relevant input. There is also a green LED at the bottom which will automatically illuminate when no red LEDs are illuminated.
Product Code : SS11244
Brand: Hoyles
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description

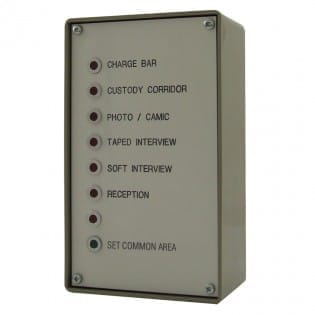

Hoyles VQ750 Multizone indicator for use as SET/Unset indicator etc… This is a simple indicator for use with intruder alarms and other systems to indicate, for example, the ON/OFF status of a collection of intruder alarms at a remote point.
Unlike our MULTIGUARD indicators there are no control functions or audible warnings.
The unit requires a constant 12vdc supply (24vdc option available).
There are 7 red LEDs which can each be illuminated by applying a negative to the relevant input. There is also a green LED at the bottom which will automatically illuminate when no red LEDs are illuminated.
Dimensions 162 x 84 x 60 mm
Seven zone indicator
Composite Aluminium Facia
Can be supplied blank or engraved
Monitors on/off status
24 vdc version available on request
LED’s available Red, Green, Yellow or BluePlease find the Text Requirements form in the Technical Info tab above. The text and associated LED colours must be specified (in writing) when ordering. The aluminium composite facia can be engraved according to specific requirements.
Please Note: If custom engraving is required lead time for this item is 7-10 working days
Features
Specifications
Questions & Answers
Questions and answers of the customers
There are no questions yet. Be the first to ask a question about this product.
Reviews (0)
Reviews
