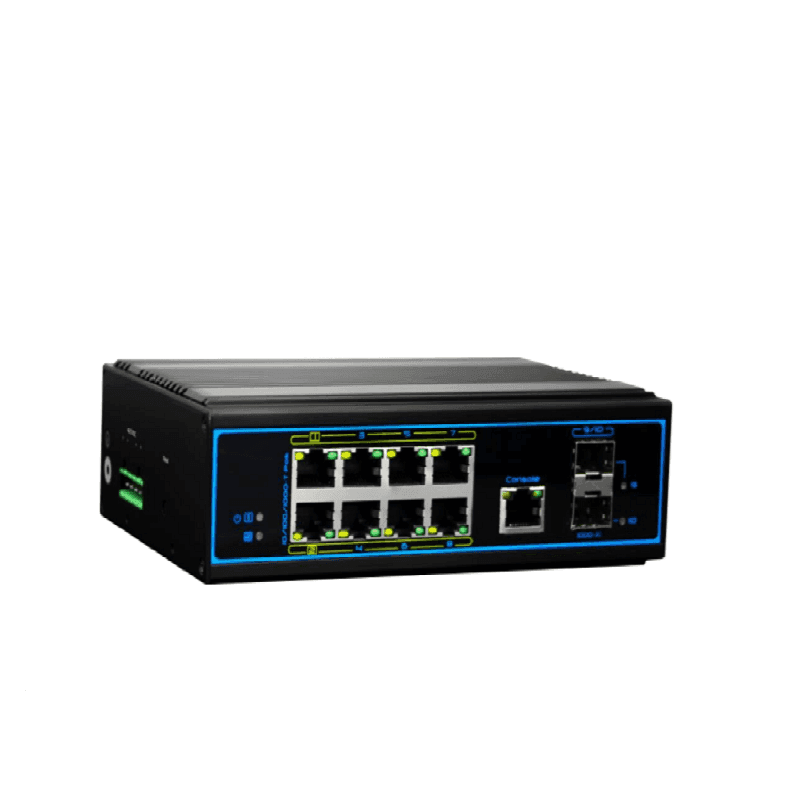

Born (BI808PGM2F)-L2 Managed Gigabit Industrial PoE switch

Name: Born (BI808PGM2F)-L2 Managed Gigabit Industrial PoE switch
SKU: SS13783
Price: 1400.00 AED
Availability: InStock

AED 1,470.00 VAT included

Compare

Product Code : SS13783 Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

(BI808PGM2F)-L2 Managed Gigabit Industrial PoE switch. It’s a 10-port full gigabit industrial managed PoE switch that supports up to 8*10/100/1000M PoE downlink ports, 2* 1000M SFP ports. 8*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard, support 2 port PoE power each up to 90W, 6 port PoE power each up to 30W. It supports L2 management, such as QoS, VLAN, MSTP, Multi-broadcast, ports management and PoE management. It supports 6KV surge protection, 8KV contact/15KV air ESD protection. It supports wall hanging, desktop and Din-rail installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.2 Year Warranty

Features

With 8*10/100/1000M PoE downlink ports, 2*1000M SFP ports, with L2 network management
Support 2 port PoE power each up to 90W,6 port PoE power each up to 30W
upport L2 management, such as QoS, VLAN, MSTP, Multi-broadcast, ports management and PoE management
6KV surge protection, 8KV contact /15KV air ESD protection
Support working temperature -40℃～75℃.
Security Features : Port Security, MAC address filter, ARP Association (Manual, ARP scanning, DHCP snooping) up to 200 entries
ARP Protection, DoS (Denial of Service), Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type, 802.1x Authentication (port-based e MAC-based), TACACS/TACACS+ Authentication, RADIUS Authentication, DHCP Filter Guest VLAN, SSLv2/SSLv3/TLSv1 SSHv1/SSHv2, Restriction of WEB access based on: IP Address, And. MAC and Port, Port Isolation Local User Name Password Authentication (2 levels), Loopback detection
Other Features : DHCP Relay, DHCP Client, DHCP Snooping, DHCP Option 82, SNTP Client, BOOTP Client

Specifications

Range of voltage : DC 48~57V
Consumption Self-consumption : <20W
Dimension(L×W×H) : 165 mm×115 mm×50mm
Material : Metal ; Color : Black ; Net-weight : 500g
Downlink ports Ports : 1~2 10/100/1000Base-T 90W PoE RJ45(IEEE802.3bt,also support IEEE 802.3af/at) 3~8 10/100/1000Base-T 30W PoE RJ45(IEEE 802.3af/at)
Uplink ports : Ports 9~10 1000M SFP slots
Switch fabric : 20Gbps
Though put : 14.88Mpps
Cable and distance : Use cat5e/6,100m max
Standard : IEEE802.3, IEEE802.3u, IEEE802.3z
