Samsung Hanwha Wisenet Wiegand module
AED 565.95 VAT included
Next product
Samsung Hanwha Wisenet V200 Expansion Input Module
AED 1,592.85 VAT included
Samsung Hanwha Wisenet V100 Expansion Reader Module
See all products from samsung-hanwha-wisenetAED 1,447.95 VAT included

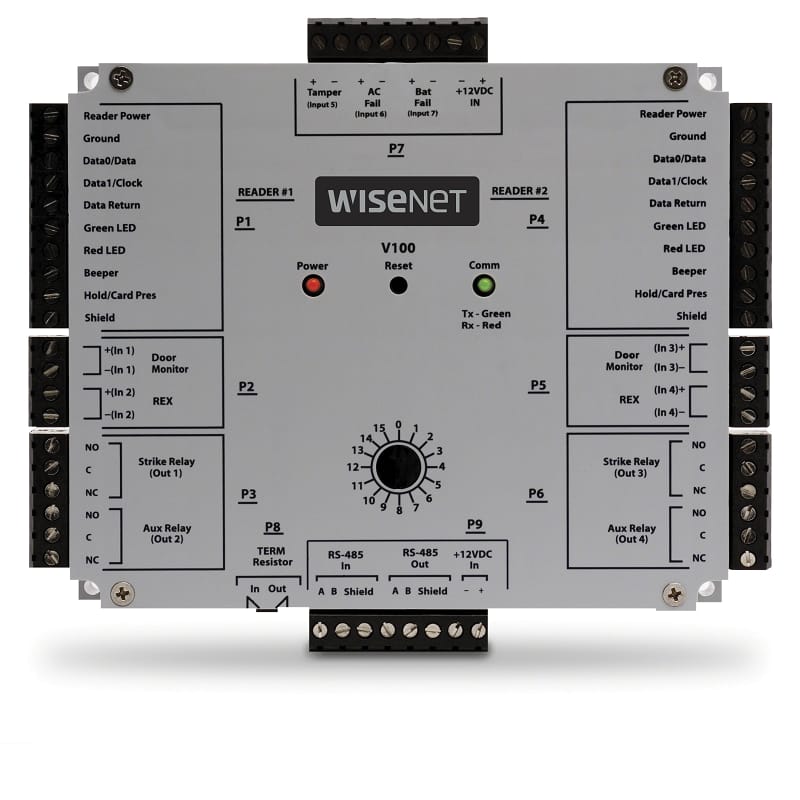

Samsung Hanwha Wisenet V100 Expansion Reader Module Reports supervised inputs.Connects to the V1000 via RS-485.Receives and processes real-time Receives and processes real-time .Reports all activity to the V1000.
Out of stock
Product Code : SS10519
Brand: Samsung Hanwha Wisenet
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Samsung Hanwha Wisenet V100 Expansion Reader Module Reports supervised inputs.Connects to the V1000 via RS-485.Receives and processes real-time Receives and processes real-time .Reports all activity to the V1000. Attractive polycarbonate enclosure protects components from damage, All connections and indicators are fully identified by silk-screened nomenclature on the cover.
Features
- Reports supervised inputs
- Connects to the V1000 via RS-485
- Receives and processes real-time Receives and processes real-time
- Reports all activity to the V1000
- Attractive polycarbonate enclosure protects components from damage
- All connections and indicators are fully identified by silk-screened nomenclature on the cover
- Processes off-line access control decisions based on facility code
Specifications
- Dimensions (WxHxD) : 5.8" x 4.825" x 1.275"(147.32mm x 122.55mm x 32.38mm)
- Housing Material : UL94 polycarbonate
- Power Supply Requirements : 60mA@9 - 18 V DC (with no readers connected). Recommended : Supervised linear power supply with battery backup, input surge protection, and AC fail and battery low contact outputs. When VertX is supplying power to readers, the requirements are 600mA@9 - 18 V DC. The V100 can supply 500mA to two readers. Separate supervised DC supplies with battery backup recommended for door locking or relay-activated devices, or for HID MaxiProx® readers
- Operating Environment : Indoors, or customer-supplied NEMA-4 rated enclosure
- Operating Temperature : 32°F to 122°F (0°C to 50°C)
- Operating Humidity : 5% to 95% relative, non-condensing
- Certifications : UL® 294 and UL® 1076 recognized component for the US, EN 50130-4 access control systems Immunity for the EU (CE mark)
- Cable Distance : RS-485 - 4000feet (1220m) to host using Belden 3105A, 22 AWG twisted pair, Shielded 100? cable : Wiegand -500feet (150m) to reader using Alpha 1299C 22 AWG, 9-conductor.
