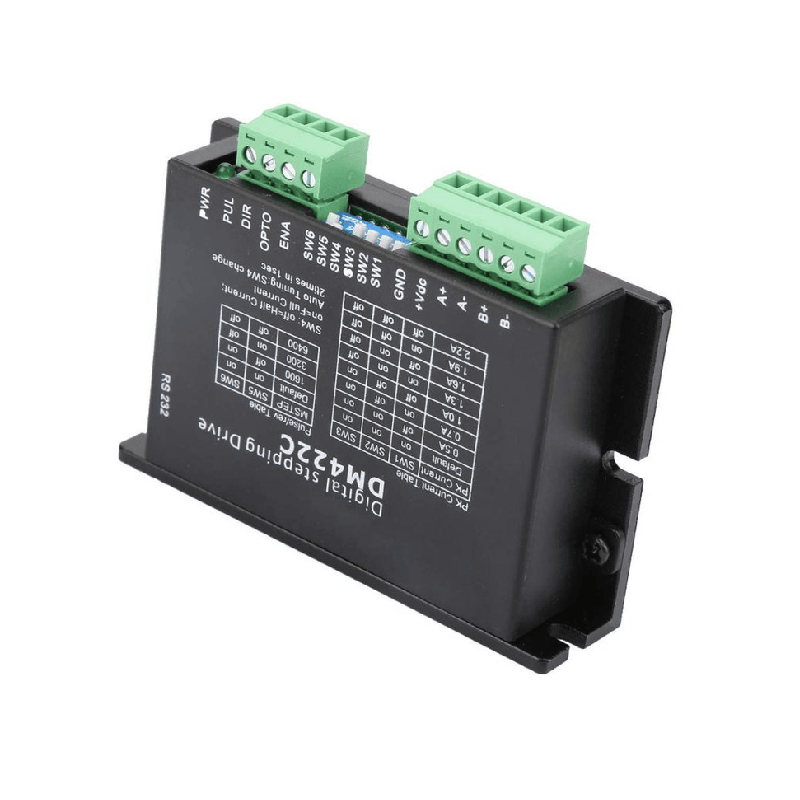

2-Phase and 4-Phase 42 Series Stepper Motor Driver, DM422C – DEPD0006

The DM422C is a fully digital stepping driver that uses a DSP with advanced control algorithms for optimal performance. It offers unique features such as anti-resonance for low-speed smoothness, motor self-test and parameter auto-setup technology, and automatic idle-current reduction for reduced motor heating. With a supply voltage of up to 36VDC, output current programmable from 0.3A to 2.2A, and pulse input frequency of up to 75kHz, the DM422C is suitable for 2-phase and 4-phase motors. The DM422C is smaller and more cost-effective than the DM432C.
