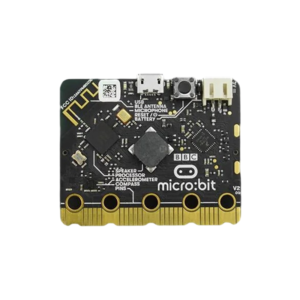

Micro:Bit An Educational & Creative Tool for Kids - DEDB0166
AED 136.16 VAT included
DFRobot – µHex Low Power Controller – DEDB0160
AED 81.89 VAT included
DFRobot – µHex Low Power Controller – DEDB0160
100 in stock
Product Code : SS155028
Brand: DFRobot
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description

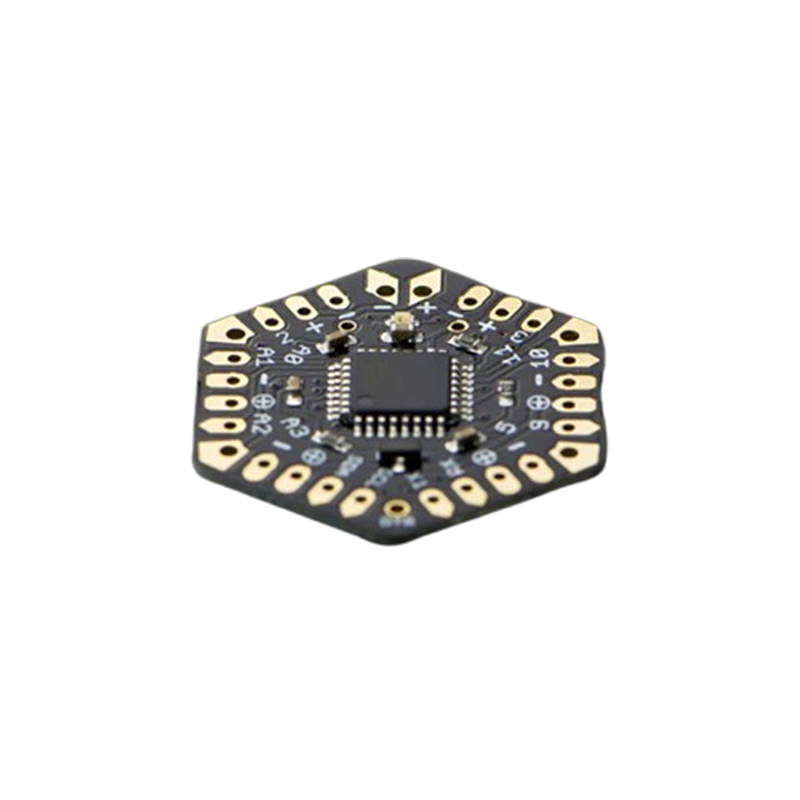

µHex is the first low-power controller which is compatible with Arduino. It is very suitable for the battery power supply environment. A 210mAh CR2032 cell battery could make it work 60 days long. As it is using Atmega 328 Microcontroller, it has good general and powerful performance.
Features
- Hexagon design, compact size with 14 IO ports and 7 power ports
- 4 switchable power supply interfaces to reduce power consumption
- Two sleep-wake interfaces for convenient interactions with surrounding
- Designated Arduino development libraries
- Cross design in power and IO interfaces, directly supports 3 pin/4 pin sensor/actuator
- Large welding plate design
Specifications
- Brand: DFRobot
- Model: DEDB0160
- Microcontroller: ATmega328P
- Operating Voltage: 2.7 - 5V
- Clock Frequency: 8MHz (RC)
- Sleep Current: 0.12uA@3V3, 0.16uA@5V (watchdog OFF)
- Flash: 32 KB
- SRAM: 2 KB
- EEPROM: 1 KB
- Digital I/O Pins: 14 (PWM: 3,5,9,10,11)
- Analog I/O Pins: 6
- UART Interface: 1
- I2C Interface: 1
- Interrupt interface: 2
- Solder Pad: 2mm/2.54mm
- Power in port: 1
- Power out port: 6 (4 of them could be turn-off)
